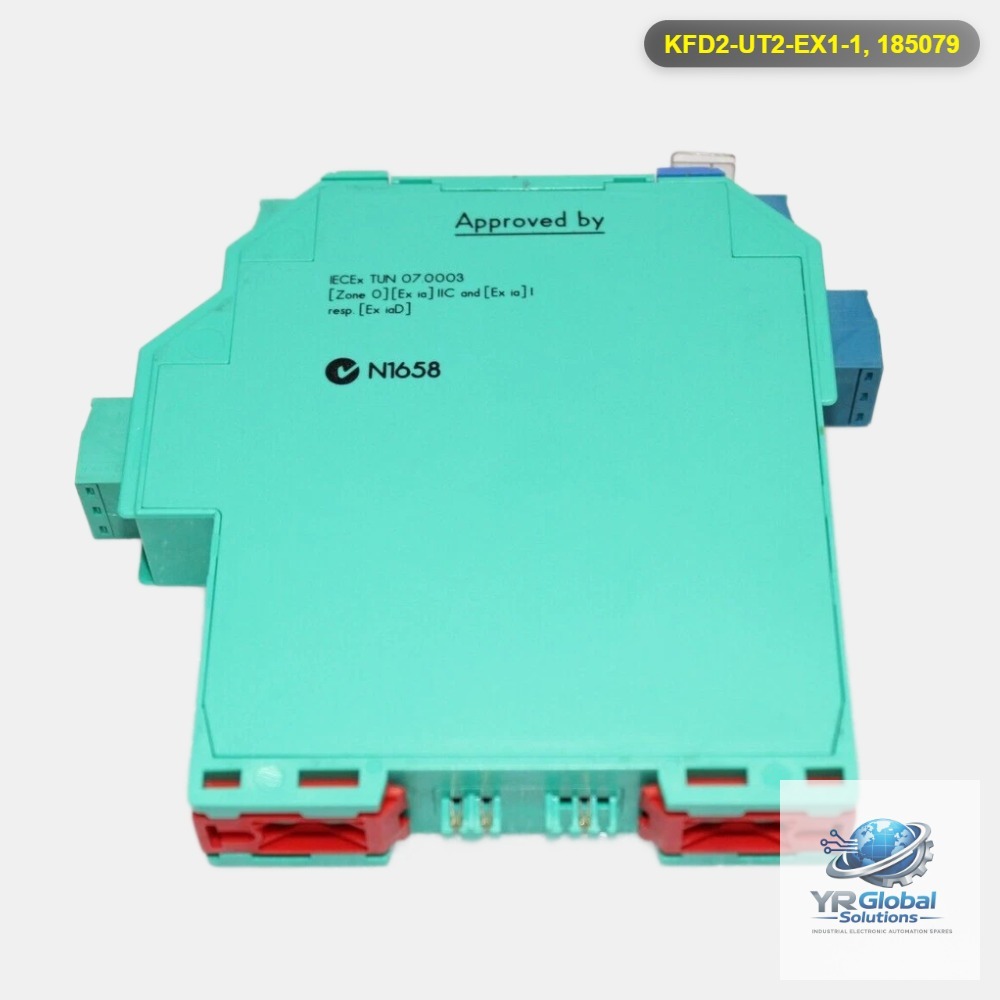

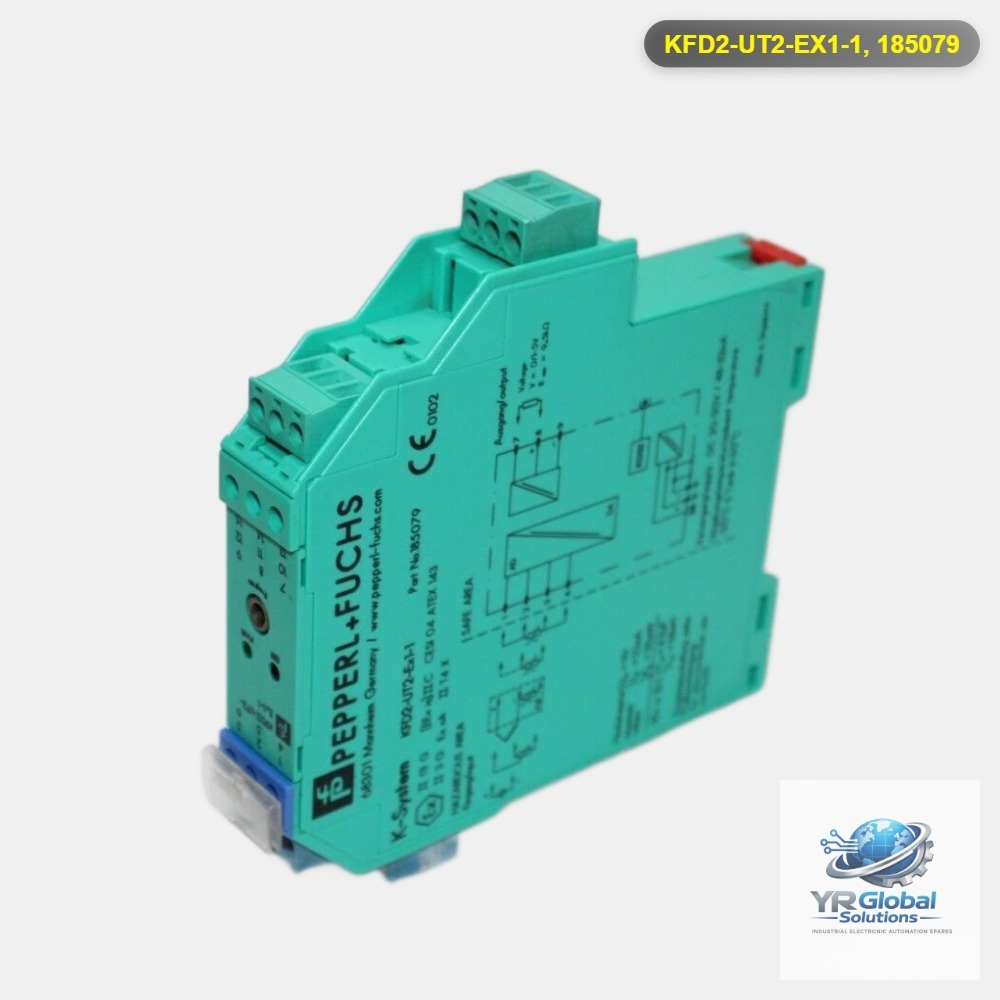

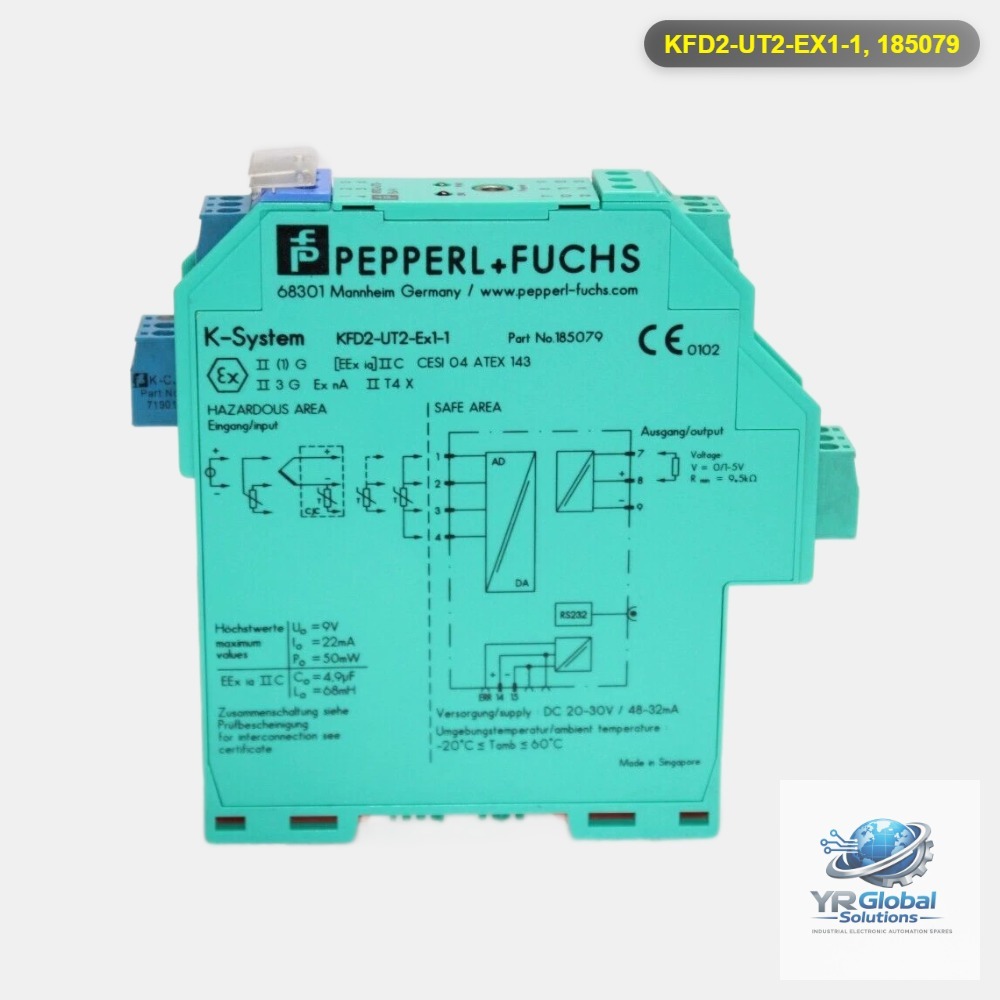

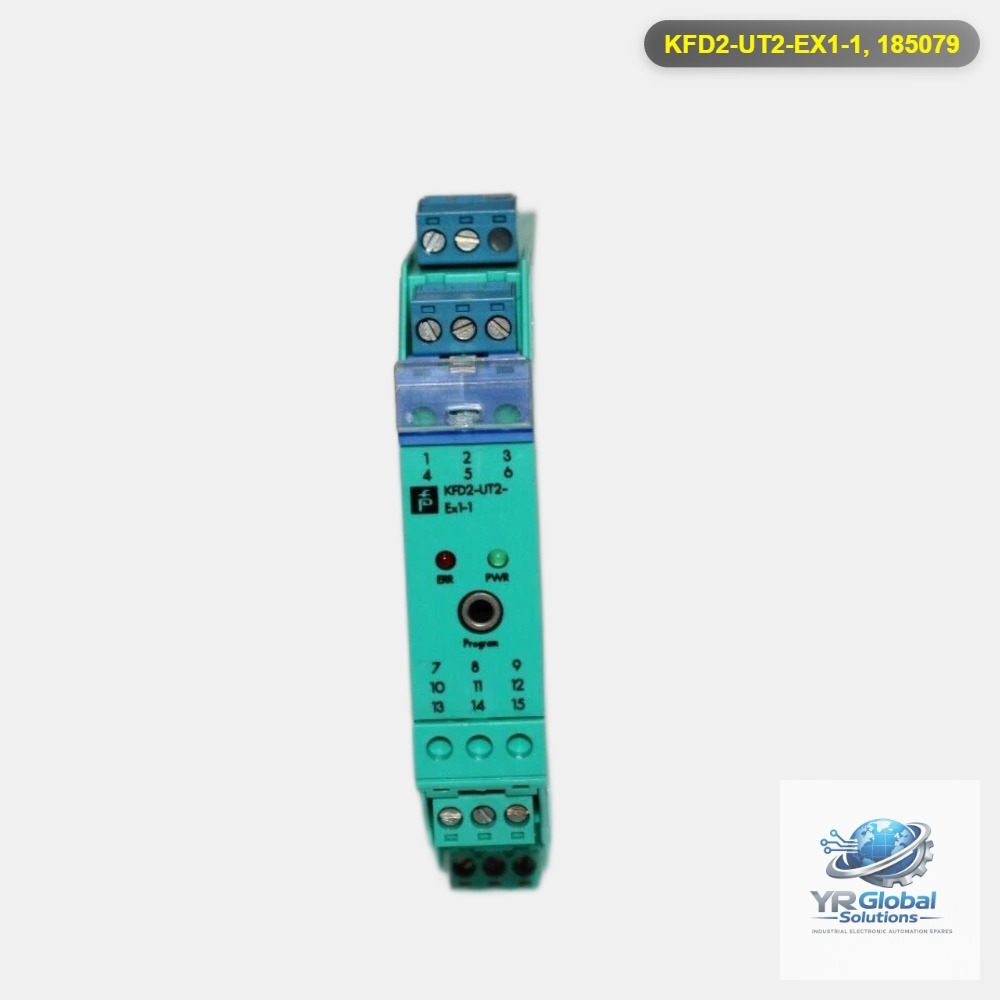

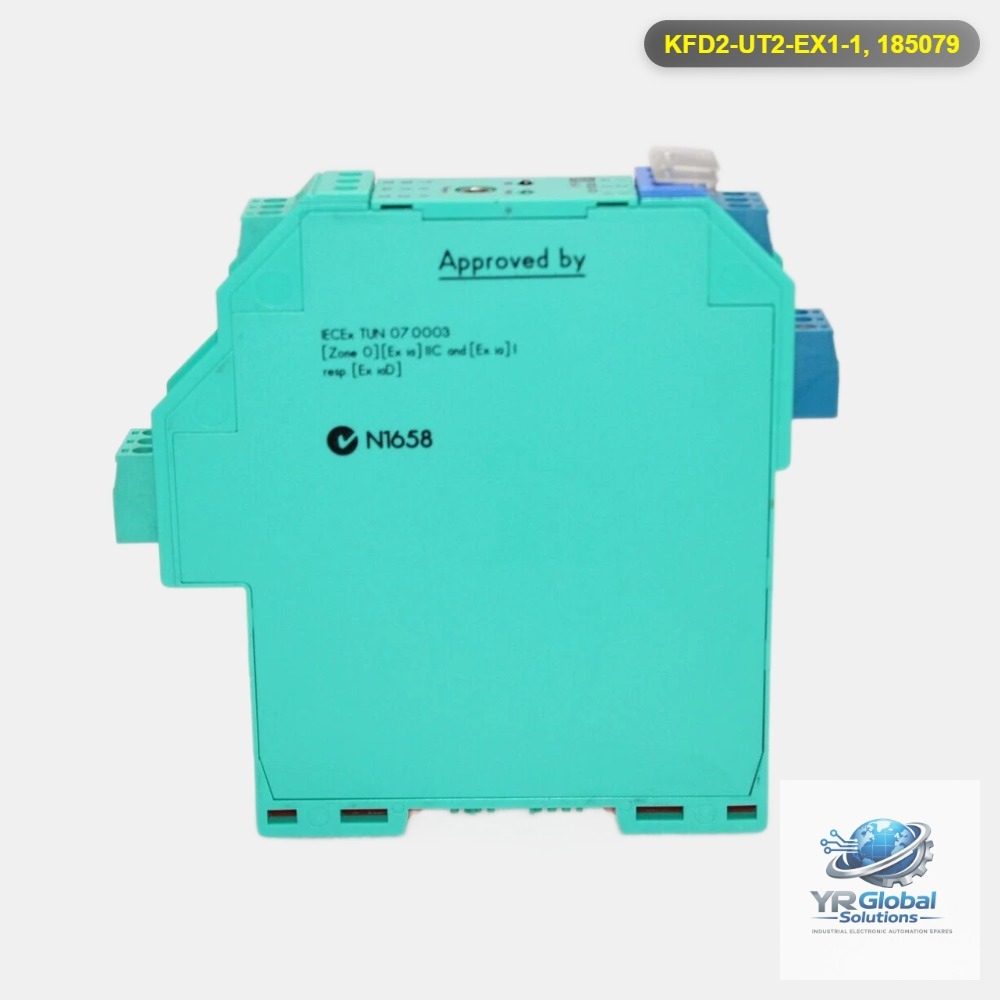

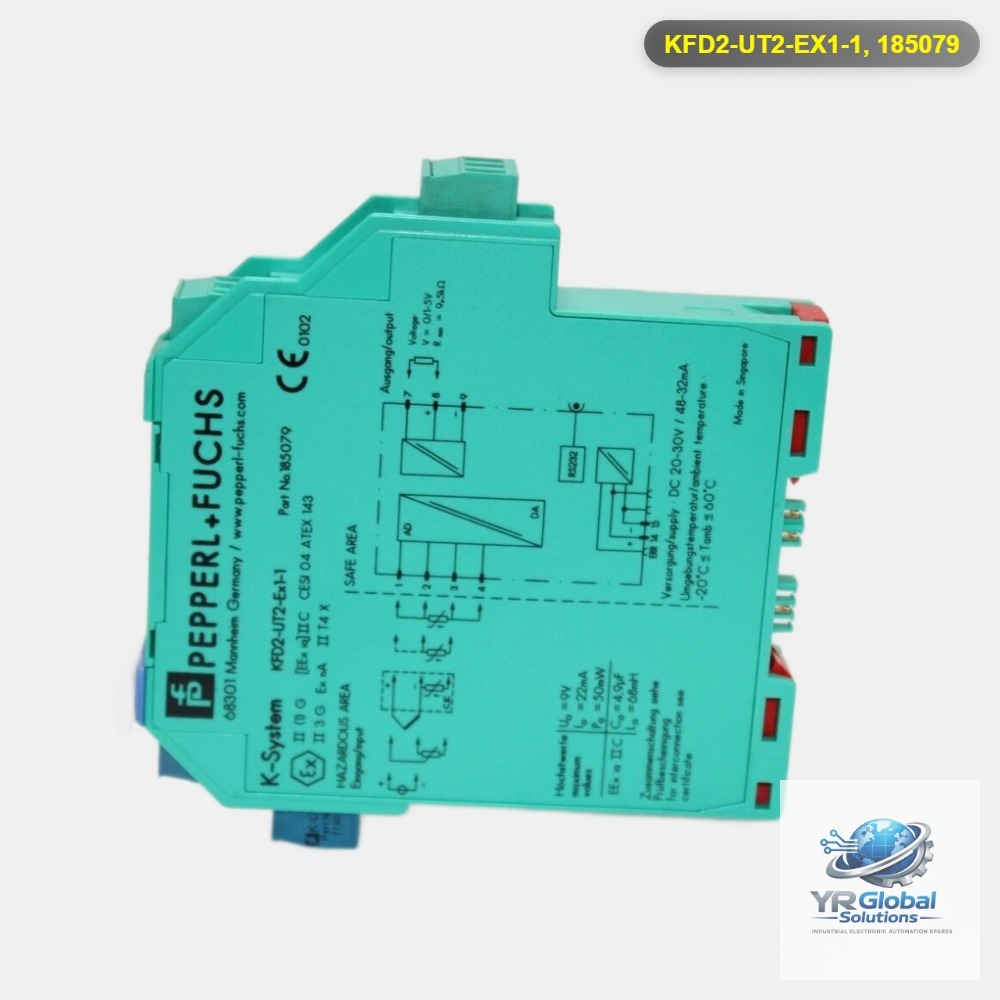

PEPPERL+FUCHS KFD2-UT2-EX1-1 UNIVERSAL TEMPERATURE CONVERTER P/N:185079
This 1-channel isolated barrier is optimized for intrinsic safety applications. It acts as a bridge between hazardous and safe areas by connecting field-side RTDs, thermocouples, potentiometers, or low-range voltage sources. It safely converts these field measurements into a linear, proportional 0/1 V to 5 V voltage output routed to control systems like PLCs or DCS.
| Specifications | |
| Product Make | PEPPERL+FUCHS |
| Operating Voltage | 20 to 30 V DC via terminals 23, 24 or Power Rail |
| Ripple | Within the supply voltage tolerance |
| Power Consumption | Maximum 0.9 W |
| Safety Integrity Level | Functional safety up to SIL 2 |
| Connection | Removable terminals 1, 2, 3, 4, 5, 6. |
| RTD Types | 2-, 3-, or 4-wire Pt10, Pt50, Pt100, Pt500, Pt1000, Ni100 |
| Power Consumption | Maximum 2.4 W |
| Potentiometers | 0.8 kΩ to 20 kΩ (2-, 3-, or 4-wire configuration) |
| Connection | Removable terminals 7, 8, 9. |
| Condition | Good |
| Warranty | 3 Months |
| Country of Origin | Germany |
| Protection Degree | IP20 |
| Length | 119mm |
| Width | 20mm |
| Height | 115mm |
| Weight | 130g |
