-5%
Isolated Barriers
PEPPERL+FUCHS KCD2-UT2-EX1, P/N: 225696
SKU: KCD2-UT2-EX1, 225696
Pepperl+Fuchs KCD2-UT2-Ex1 (Part Number 225696)
₹7,600.00 ₹8,000.00

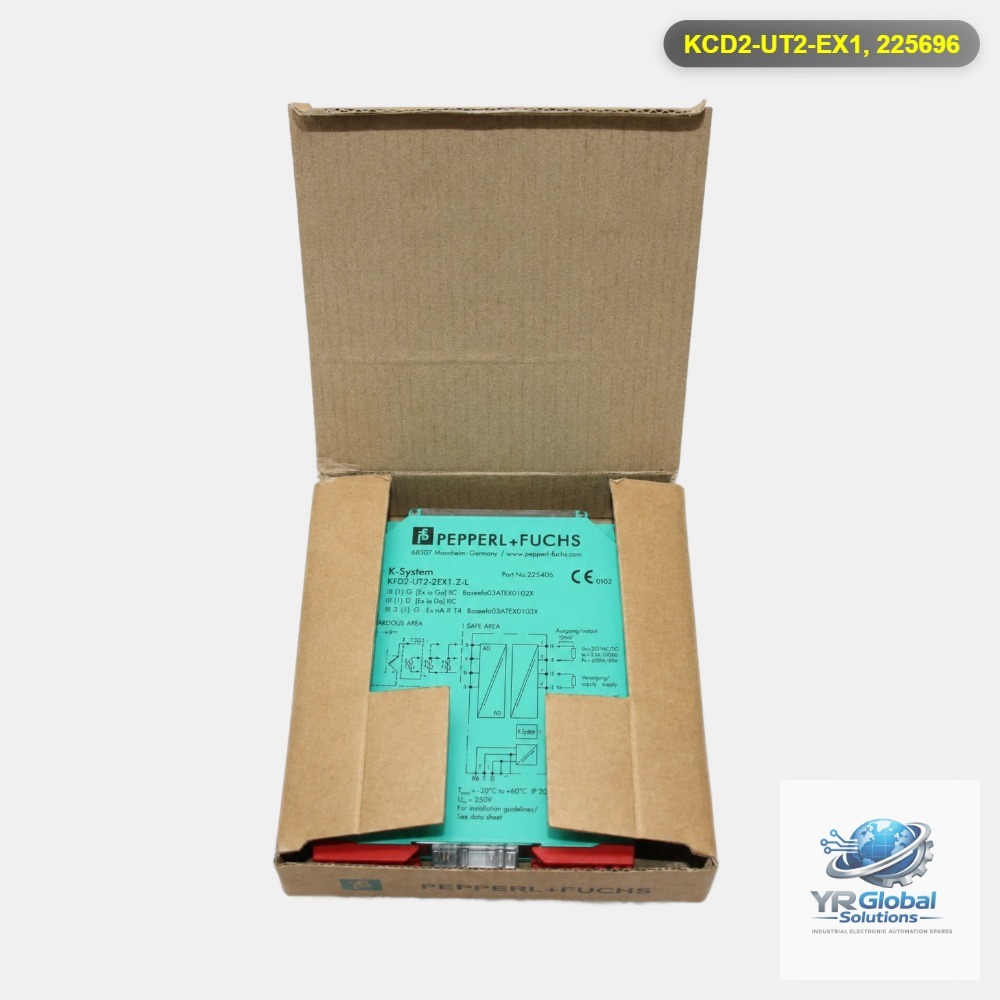

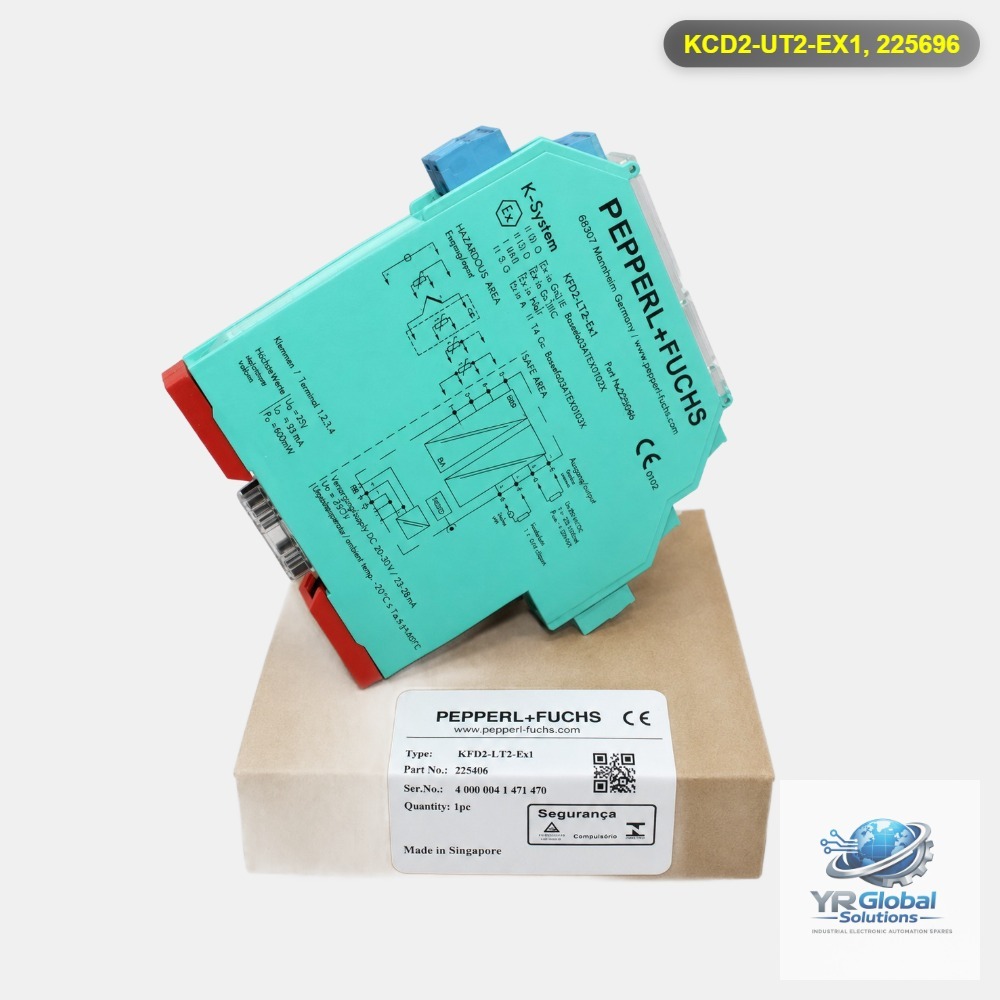

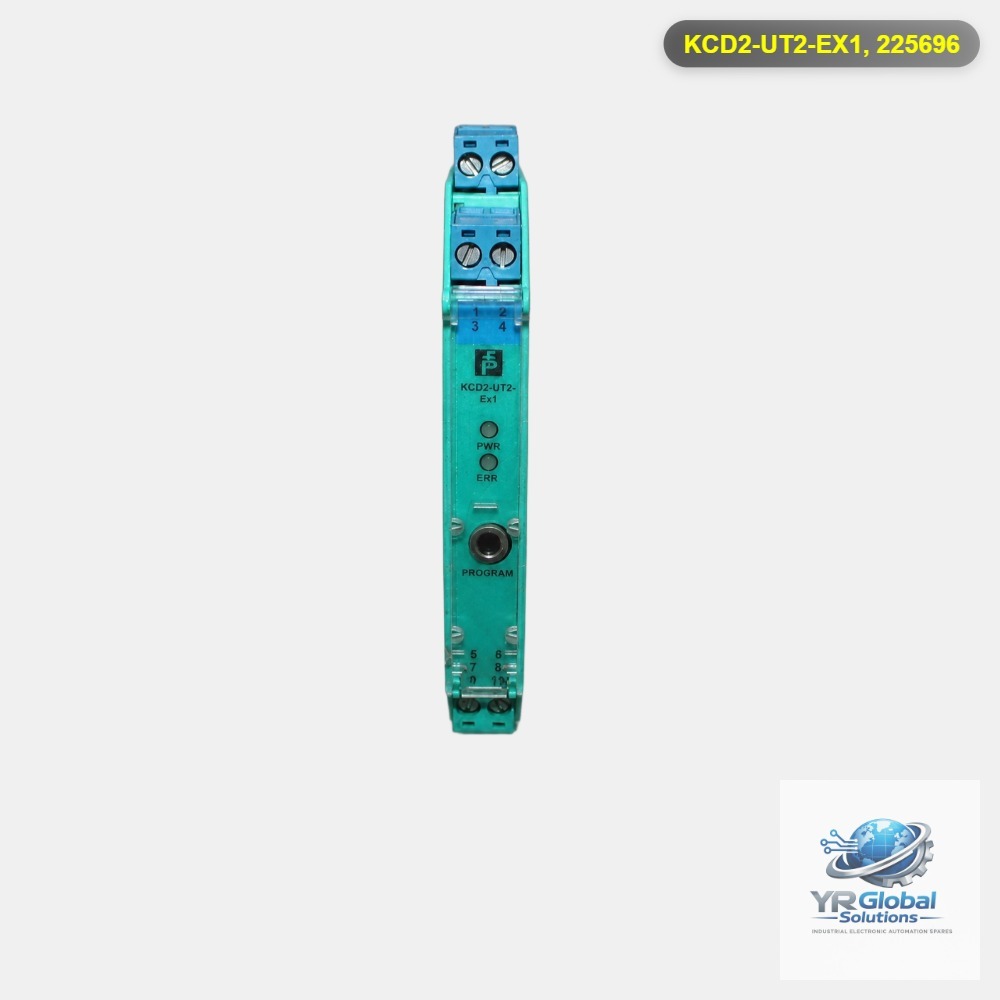

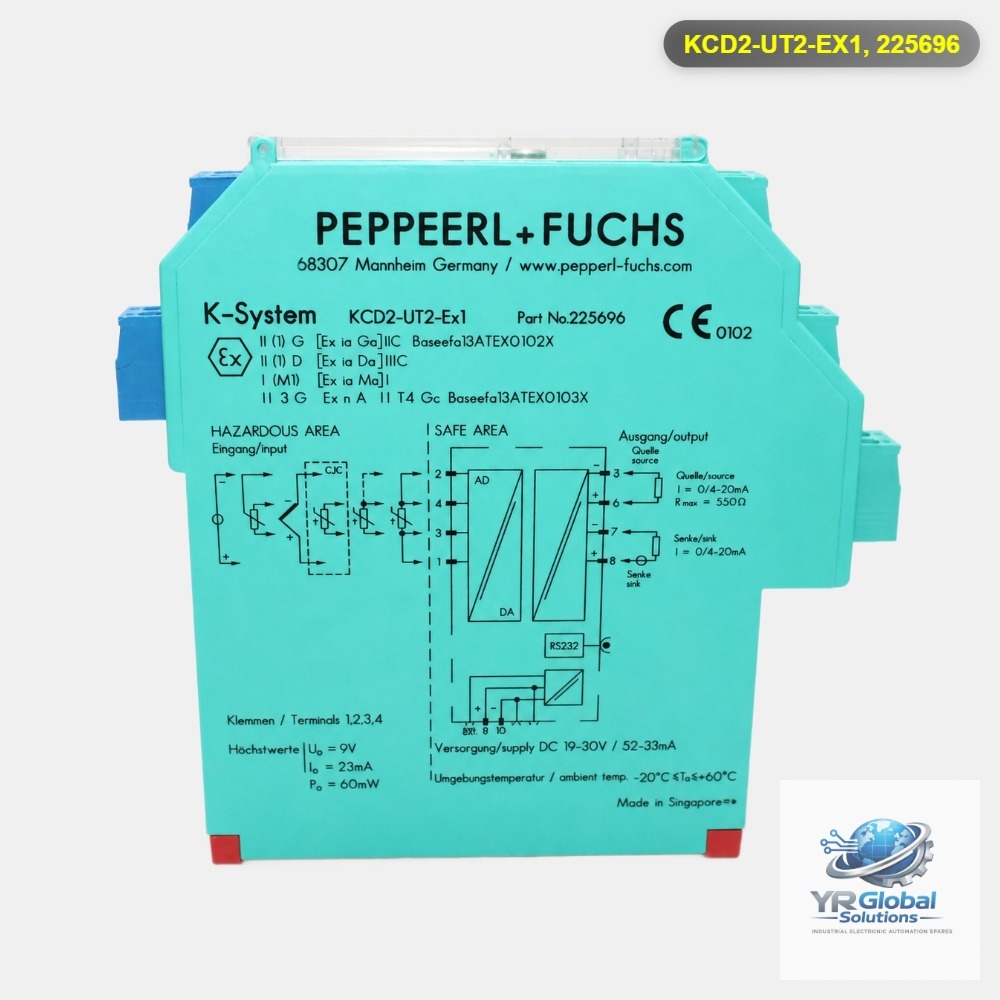

PEPPERL+FUCHS KCD2-UT2-EX1, P/N: 225696
The Pepperl+Fuchs KCD2-UT2-Ex1 (Part Number 225696) is a high-performance, single-channel intrinsic safety barrier and universal temperature converter. It isolates, converts, and transmits signals from temperature sensors located in hazardous explosive environments to safe-area control systems (like a PLC or DCS).
| Specifications | |
| Product Make | PEPPERL+FUCHS |
| Rated Voltage | 19 to 30 V DC |
| Ripple | Within the permissible supply tolerance limit |
| Power Consumption | ≤ 700 mW |
| Power Loss | ≤ 600 mW |
| Connection Type | Terminals 9+, 10- |
| Measuring RTD Current | Approximately 200 µA |
| Lead Resistance | Max ≤ 50 Ω per line |
| Supported Thermocouples | Types B, E, J, K, L, N, R, S, T, TXK, TXKH, TXA |
| Connection Terminals | Terminals 5+, 6- |
| Condition | Good |
| Warranty | 3 Months |
| Country of Origin | Germany |
| Protection Degree | IP20 |
| Length | 118mm |
| Width | 12.5mm |
| Height | 114mm |
| Weight | 100g |
