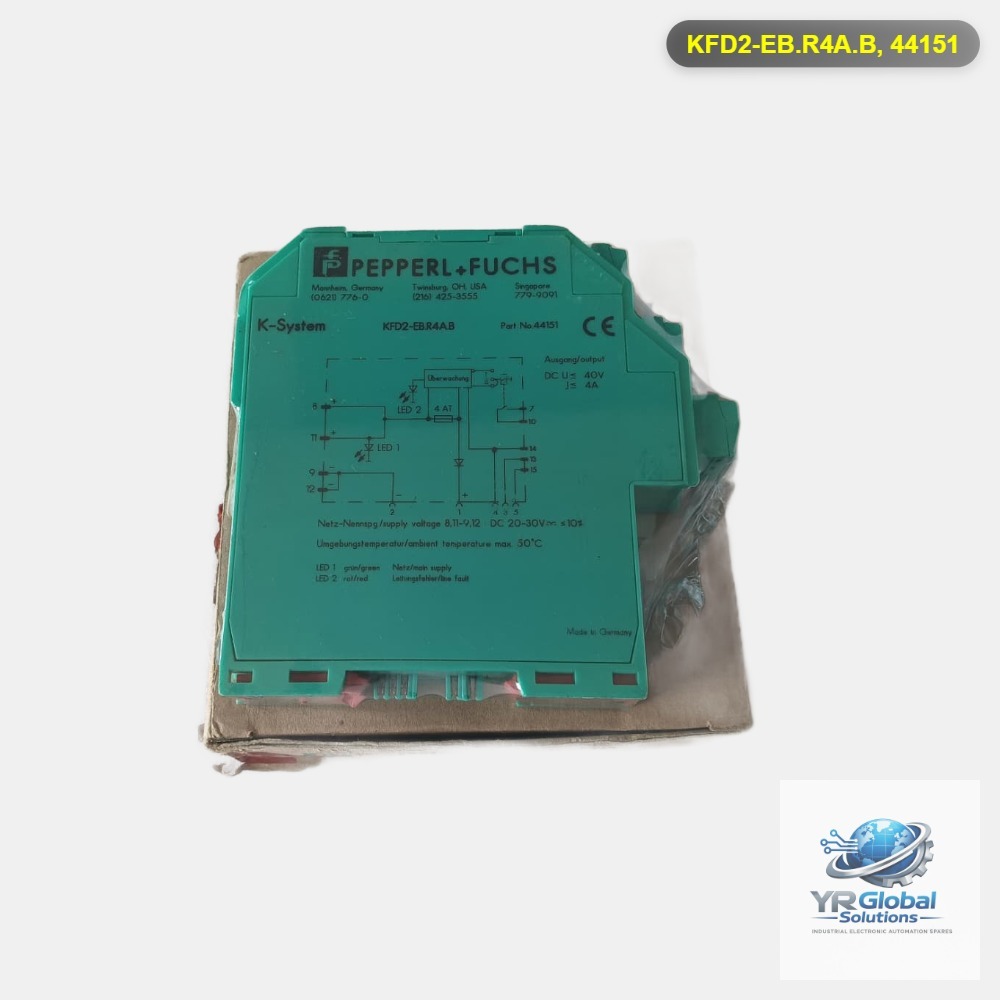

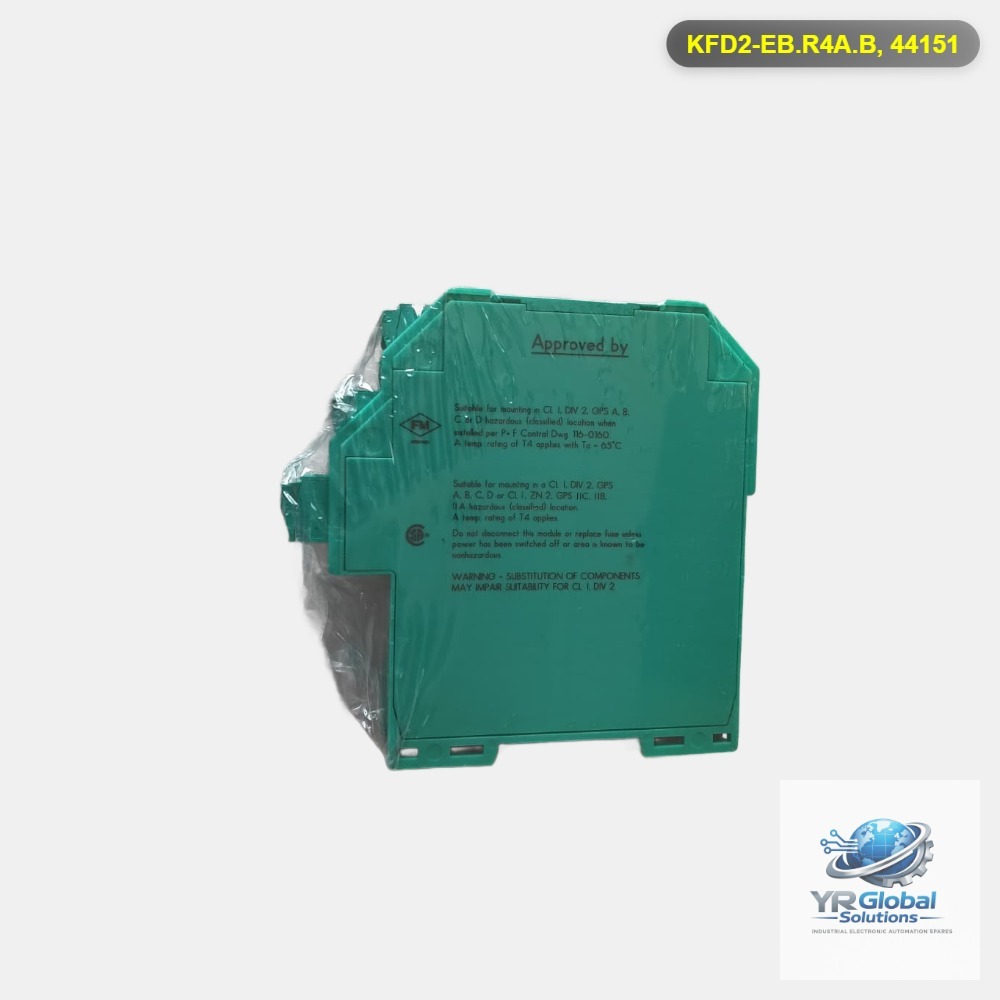

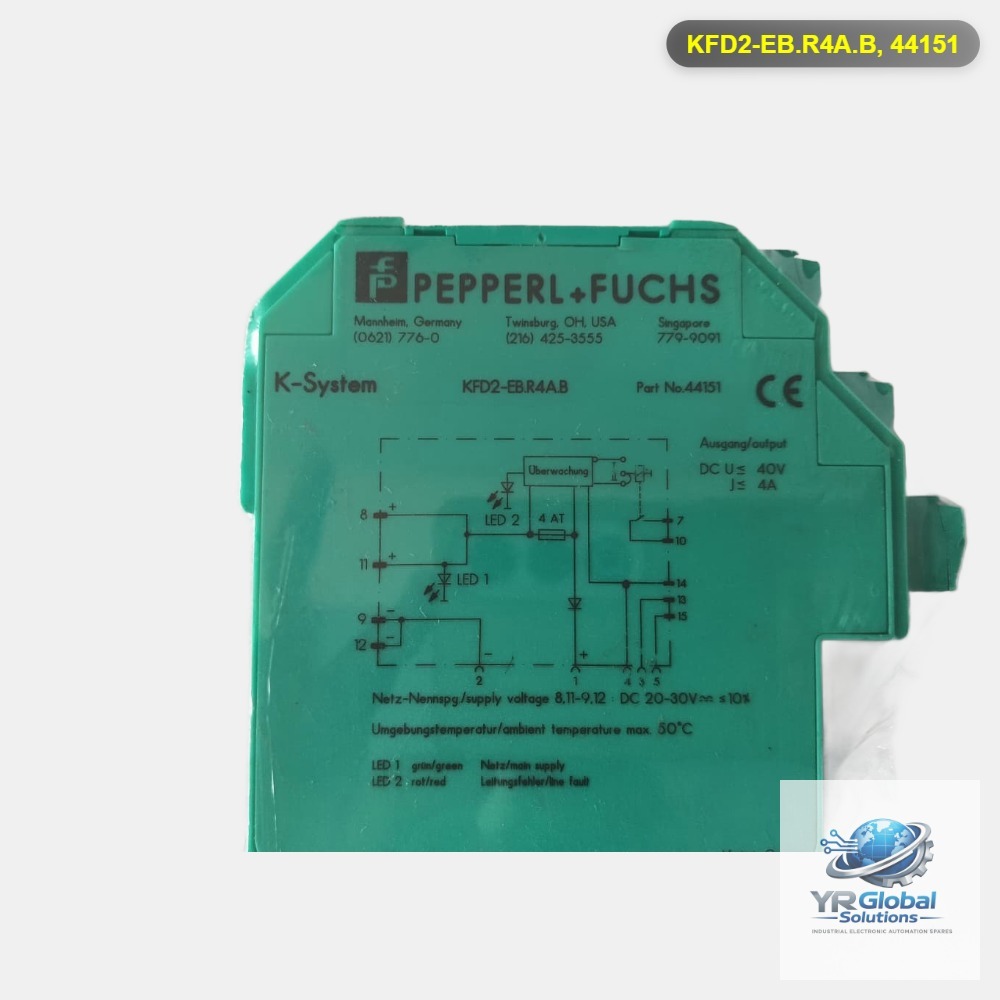

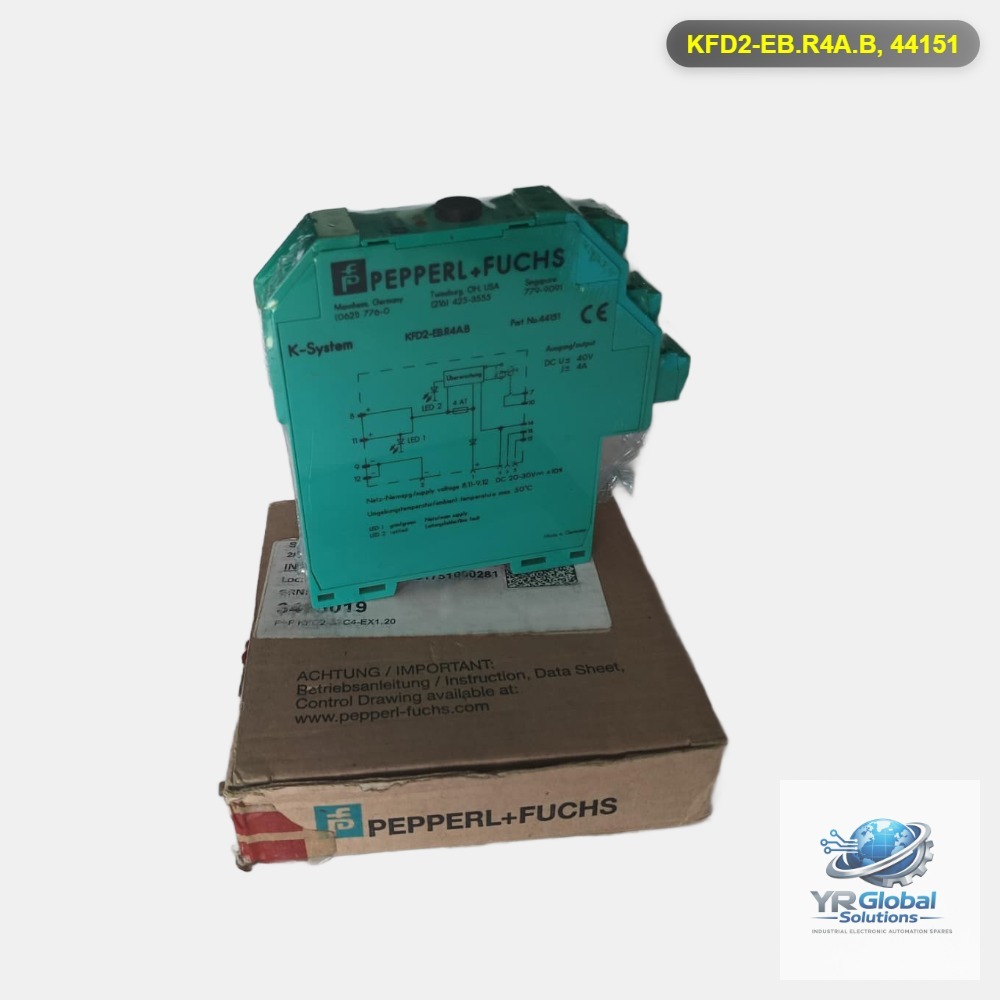

PEPPERL+FUCHS KFD2-EB.R4A.B, P/N: 44151
Up for sale is a genuine Pepperl+Fuchs KFD2-EB.R4A.B Redundant Power Feed Module(Part Number: 44151). This high-reliability K-System component is engineered to feed 24V DC power directly onto a Pepperl+Fuchs Power Rail setup, eliminating individual point-to-point wiring for your safety barriers and signal isolators.
| Specifications | |
| Product Make | PEPPERL+FUCHS |
| Input Voltage | 20 to 30 V DC |
| Output Rating | 24 V DC / Maximum 4 A supply current |
| Fuse Protection | Built-in replaceable 5 AT time-lag fuse |
| Diagnostic Indicators | Green LED (Power), Red LED (Fault status) |
| Fault Output | Galvanically isolated mechanical relay contact |
| Mounting Style | Standard 35mm DIN Rail |
| Output Voltage | \(U_{out} = U_{in} – 0.6\text{ V}\) |
| Loop-Through Current | Up to 10 A maximum via paired daisy-chain terminals |
| Output Supply Current | ≤ 4 A maximum direct supply. |
| Condition | Good |
| Warranty | 3 Months |
| Country of Origin | Germany |
| Protection Degree | IP20 |
| Length | 115mm |
| Width | 20mm |
| Height | 119mm |
| Weight | 100g |
