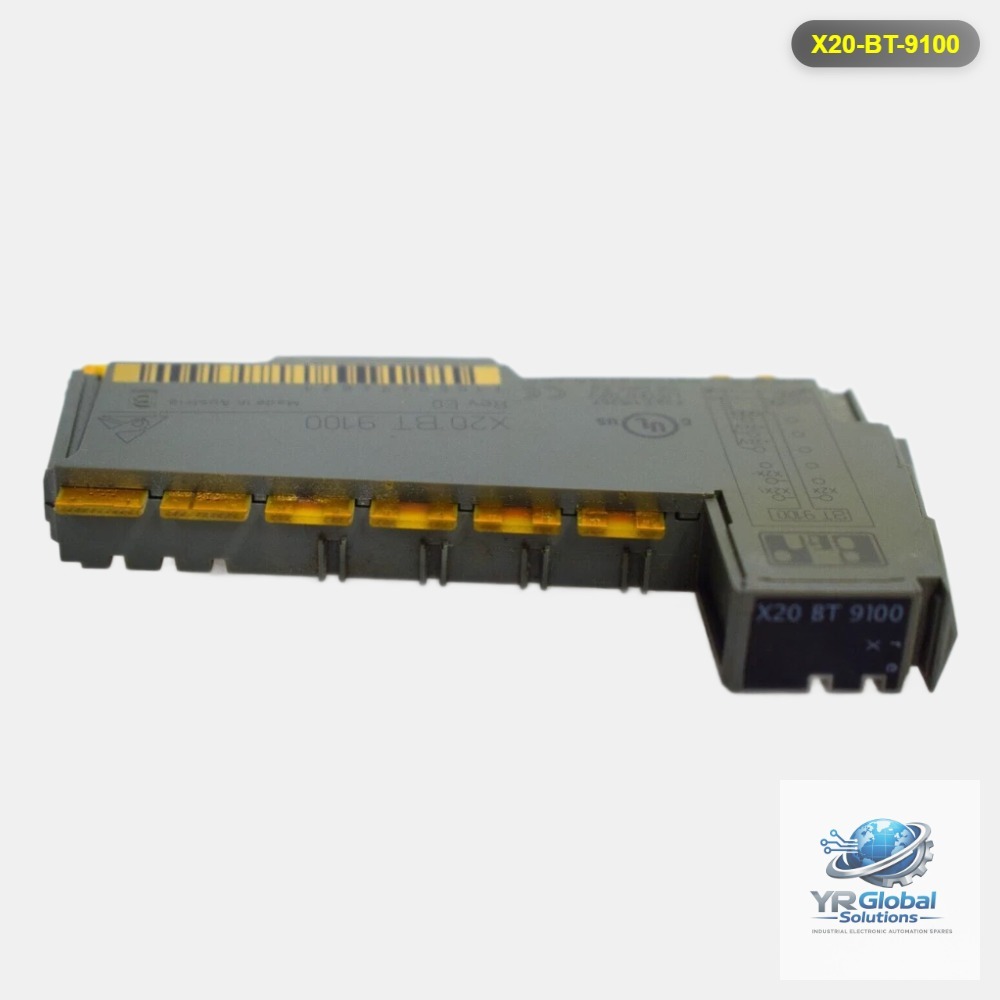

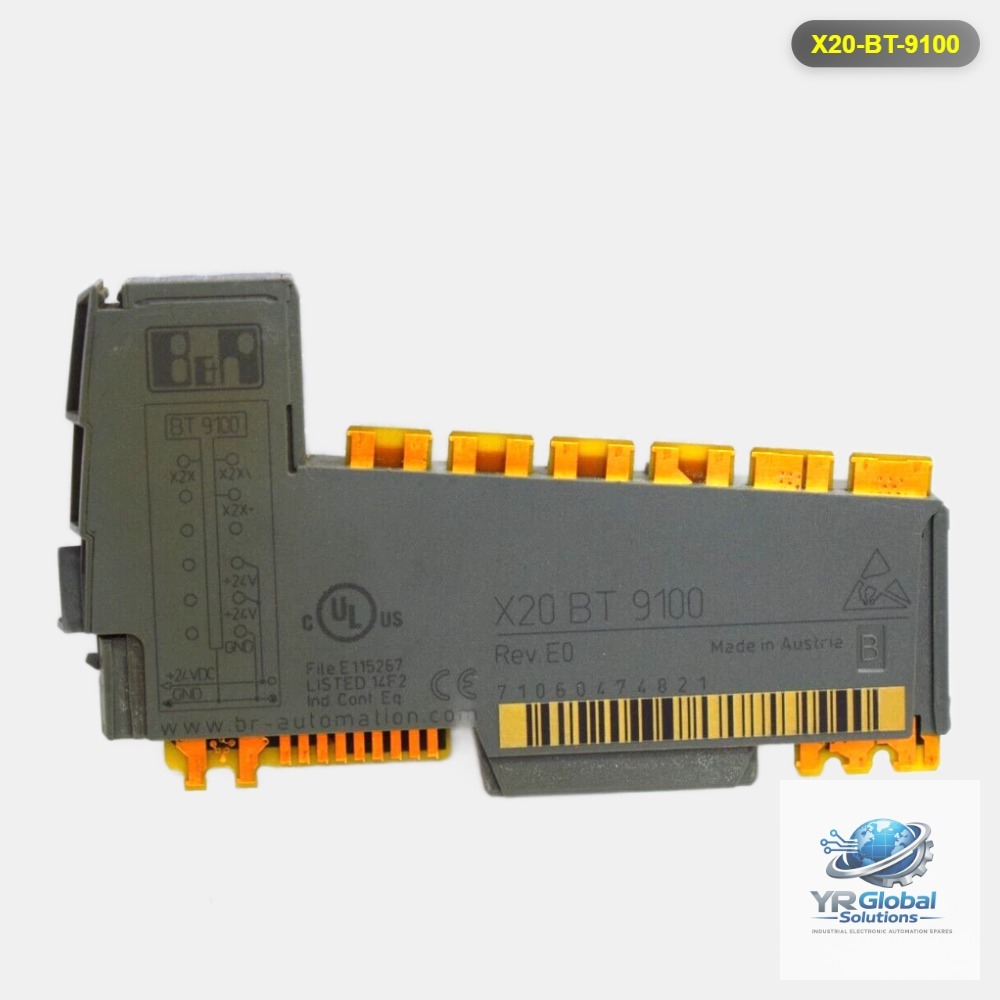

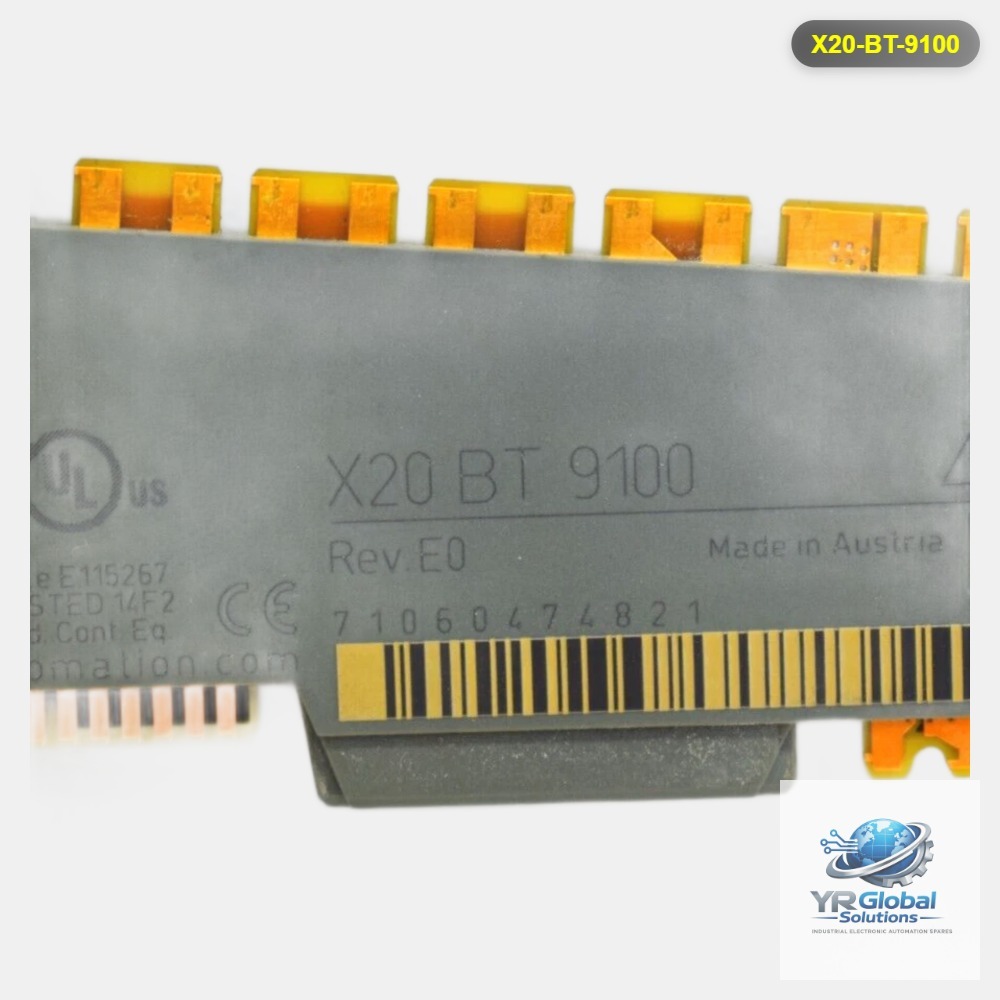

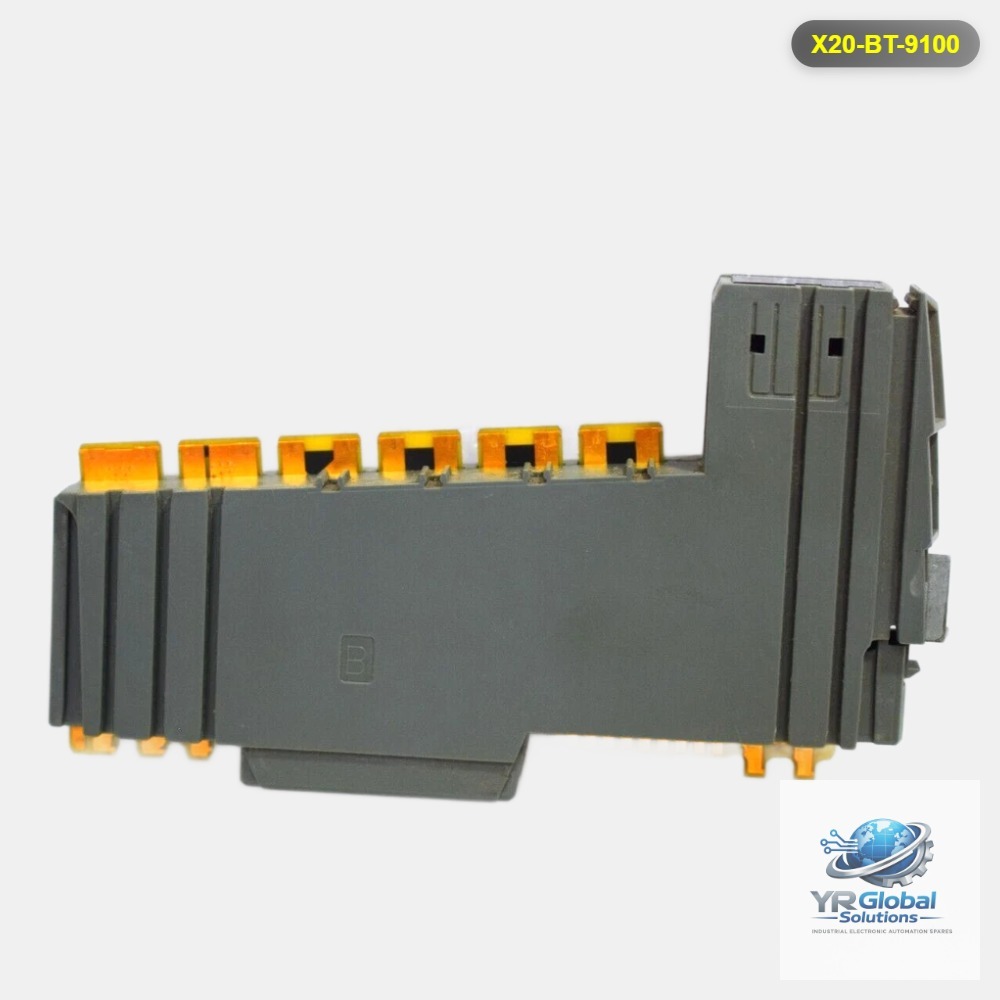

B&R X20-BT-9100 LINK BUS TRANSMITTER
The X20BT9100 functions as a system bus expansion transmitter, bridging local and distant X20 segments via standard X2X Link cables. Beyond data transmission, it features an integrated power supply connection that routes 24 VDC to the internal I/O supply line. Designed for maximum reliability in harsh industrial environments, it features a highly compact form factor to minimize control cabinet footprint and includes dedicated status LEDs for rapid on-site troubleshooting.
| Specifications | |
| Product Make | B&R Automation |
| Input Voltage | 24 VDC (-15% / +20%) |
| Reverse Polarity Protection | None |
| Required Input Line Fuse | Max. 10 A slow-blow |
| Nominal Output Voltage | 24 VDC |
| Permissible Contact Load | 10.0 A maximum |
| Short Circuit Behavior | Dependent on the required external line fuse |
| Bus Power Consumption | 0.5 W |
| Bus Type / Protocol | B&R X2X Link |
| Maximum Distance | Up to 100 metres segment length between remote stations |
| Condition | Good |
| Warranty | 3 Months |
| Country of Origin | Austria |
| Protection Degree | IP20 |
| Length | 72mm |
| Width | 12.5mm |
| Height | 100mm |
| Weight | 55g |
