PLC I/O Modules
PILZ 772136
SKU: 772136

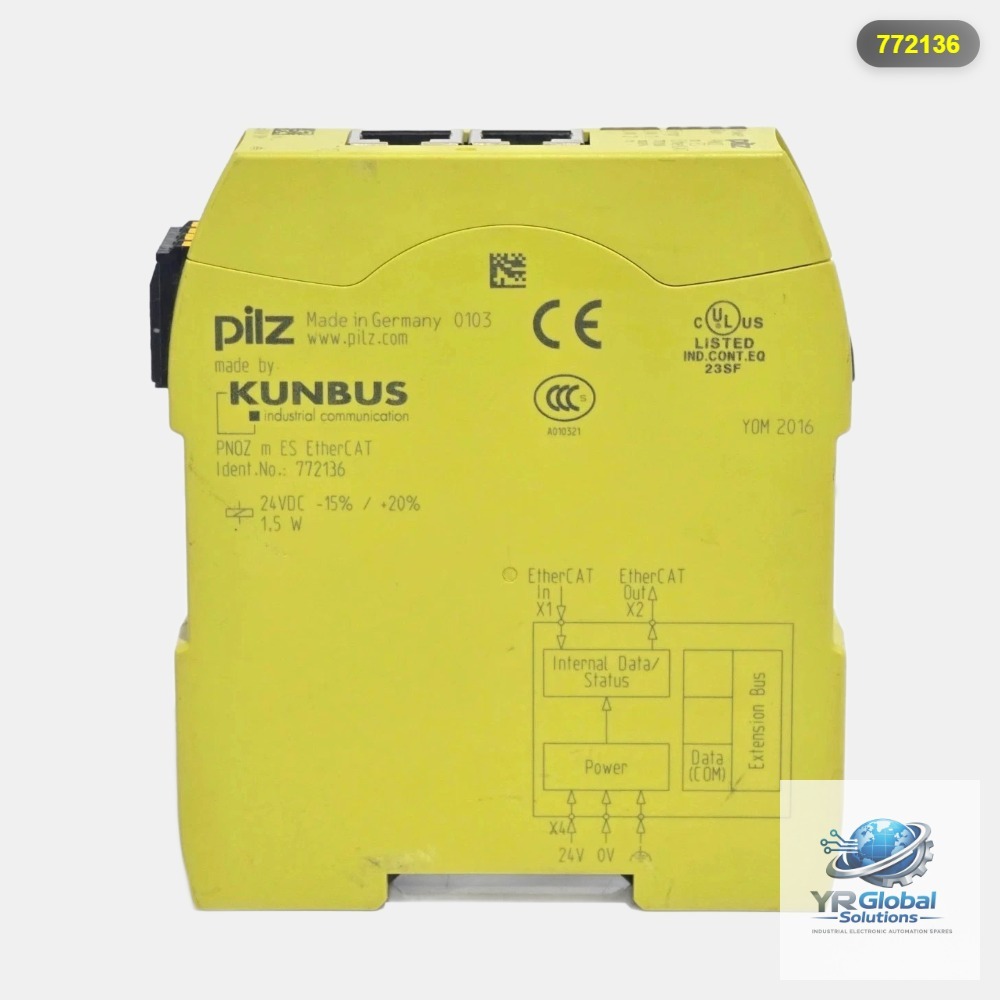

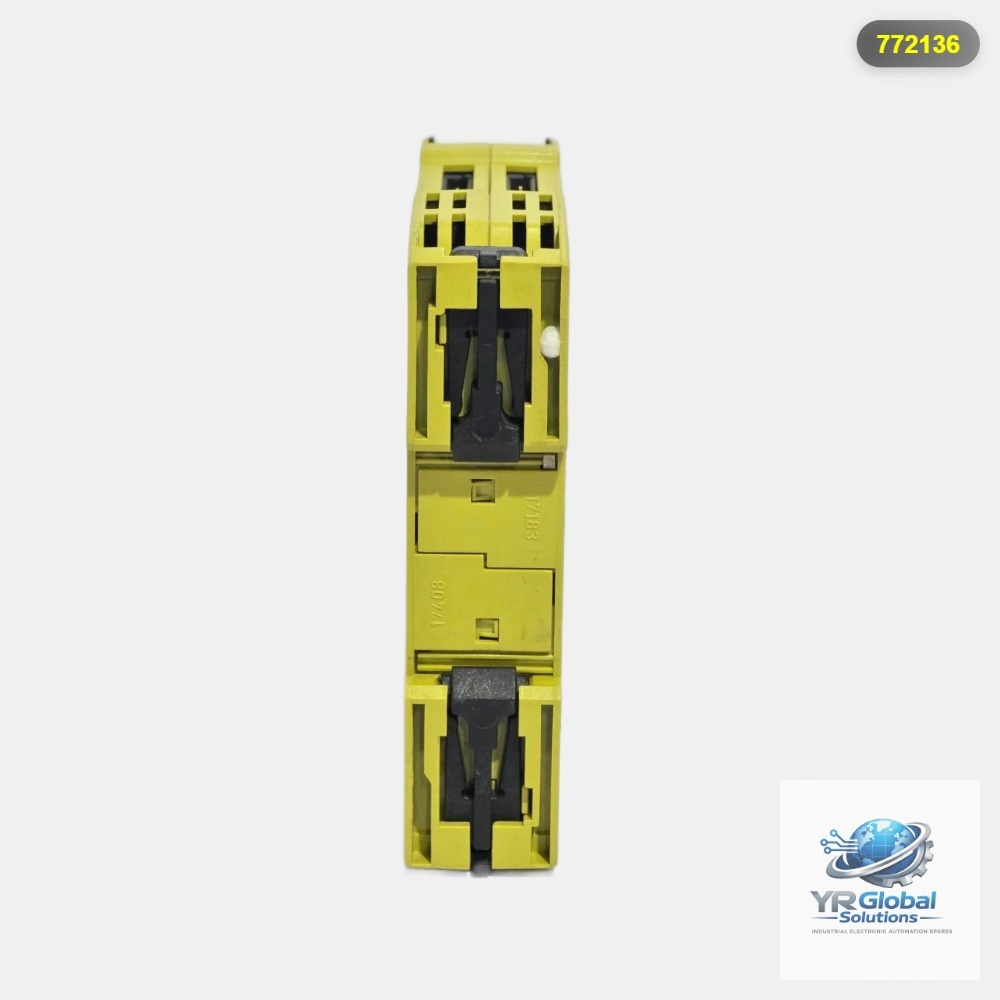

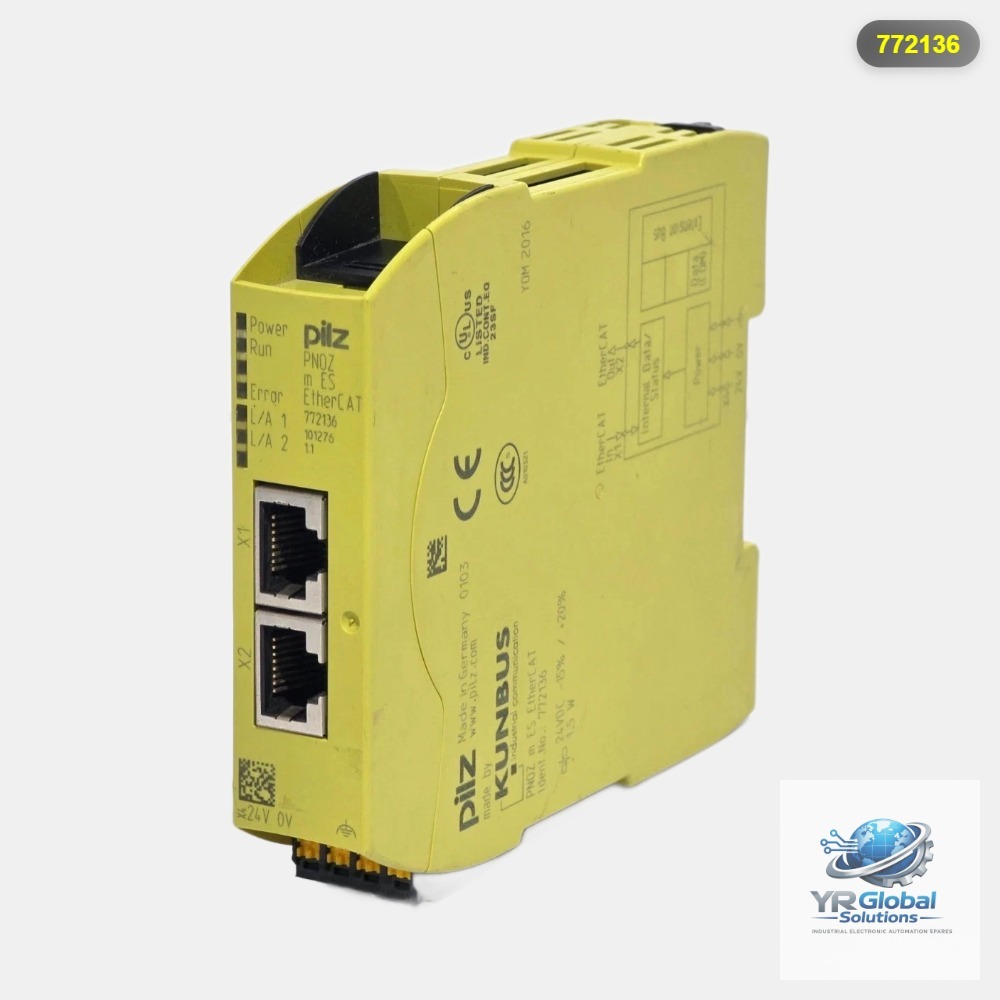

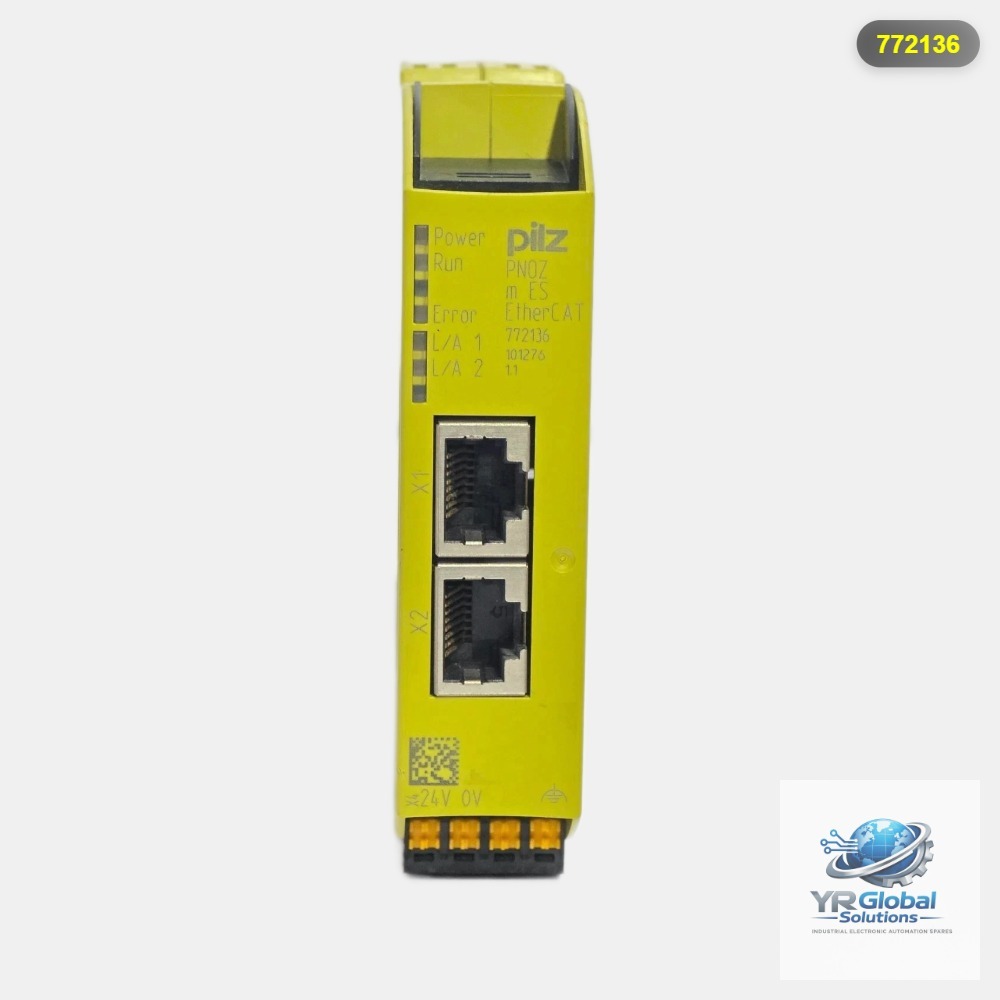

Pilz 772136 PNOZ m ES EtherCAT Fieldbus Expansion Module
₹24,700.00 ₹26,000.00
The Pilz 772136 (Model: PNOZ m ES EtherCAT) is a high-performance, non-safety fieldbus communication expansion module designed exclusively for the PNOZmulti 2 configurable control system. This module functions as an EtherCAT Slave (supporting CANopen over EtherCAT) to facilitate rapid, reliable bidirectional transmission of non-safety-related operational data, diagnostic information, and control signals between the PNOZmulti 2 base controller and high-level control units or PLCs. Configured easily using the Pilz PNOZmulti Configurator software, it features 128 virtual inputs and outputs to streamline complex diagnostic networking.
| Specifications | |
| Product Make | PILZ |
| Model Name | PNOZ m ES EtherCAT |
| GTIN / EAN | 4.04655E+12 |
| Product Range | PNOZmulti 2 Series |
| Network Interface | EtherCAT (Slave, CANopen over EtherCAT compliant) |
| Data Transmission Rate | 100 MBit/s |
| Connection Hardware | 2 x RJ45 Industrial Ports |
| Power Consumption | 0.9 W DC (Max power dissipation: 1.50 W) |
| Current Rating | 35 Ma |
| Virtual I/O Capacity | Up to 128 virtual inputs & 128 virtual outputs |
| Condition | NEW |
| Warranty | 1 YEAR |
| Country of Origin | Germany |
| Protection Degree | IP20 (Housing & Terminals) / IP54 (Mounting environment) |
| Length | 115mm |
| Width | 22.5mm |
| Height | 101.4mm |
| Weight | 95g |
