B&R AC122 P/N: 8AC122.60-2
Available on backorder
B&R AC122 P/N: 8AC122.60-2 ENCODER MODULE
₹12,792.27 ₹13,465.55
Available on backorder

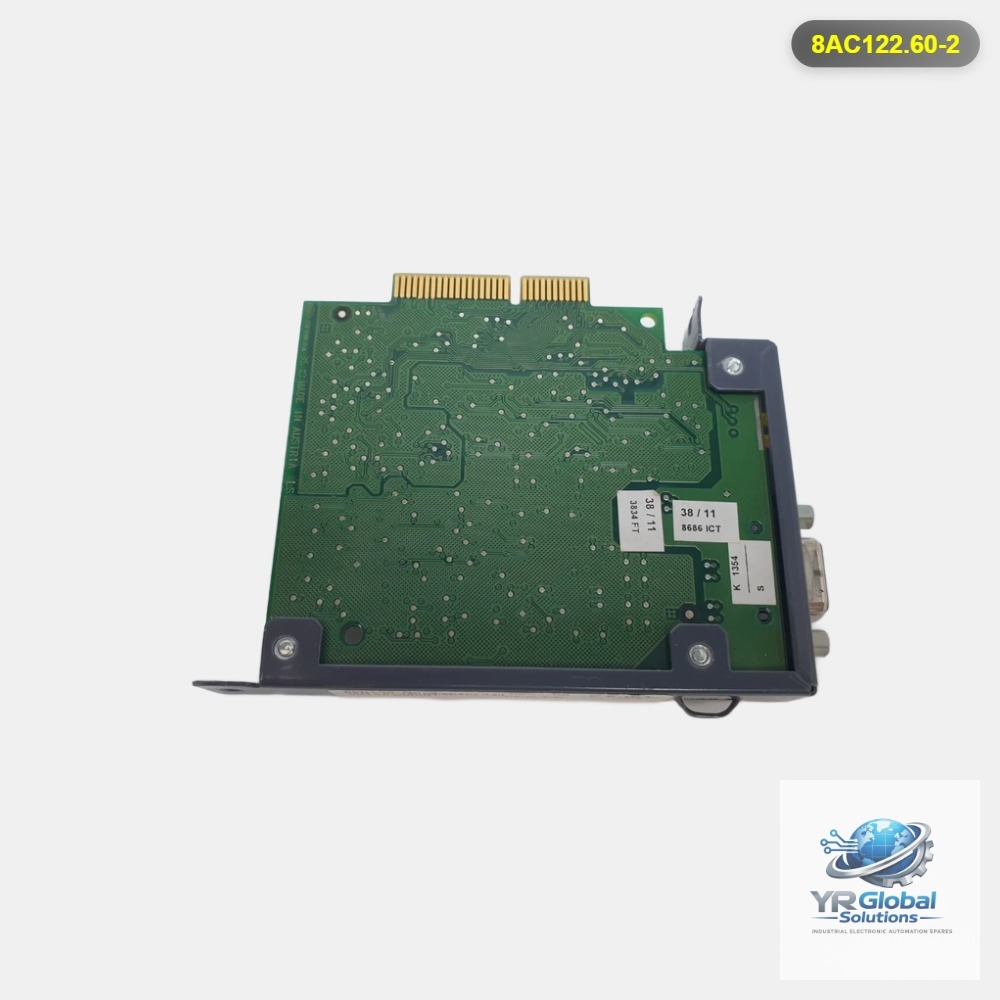

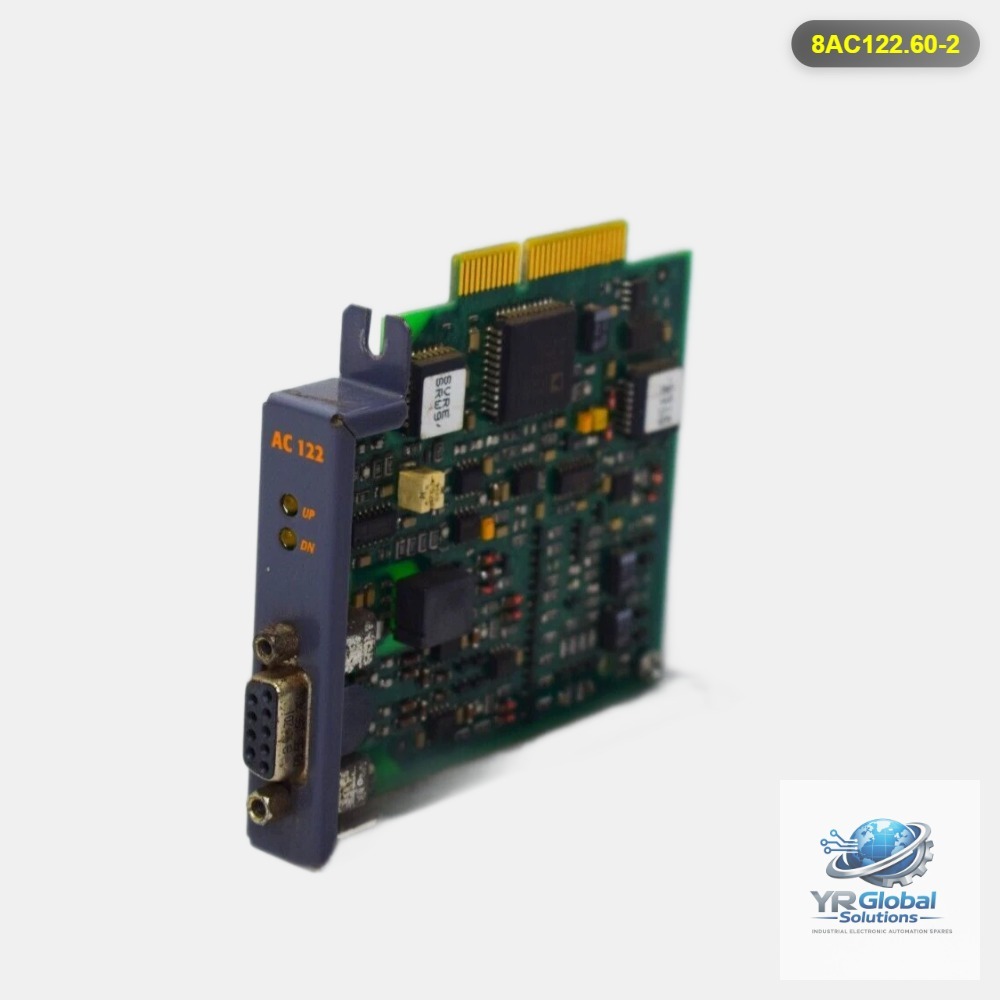

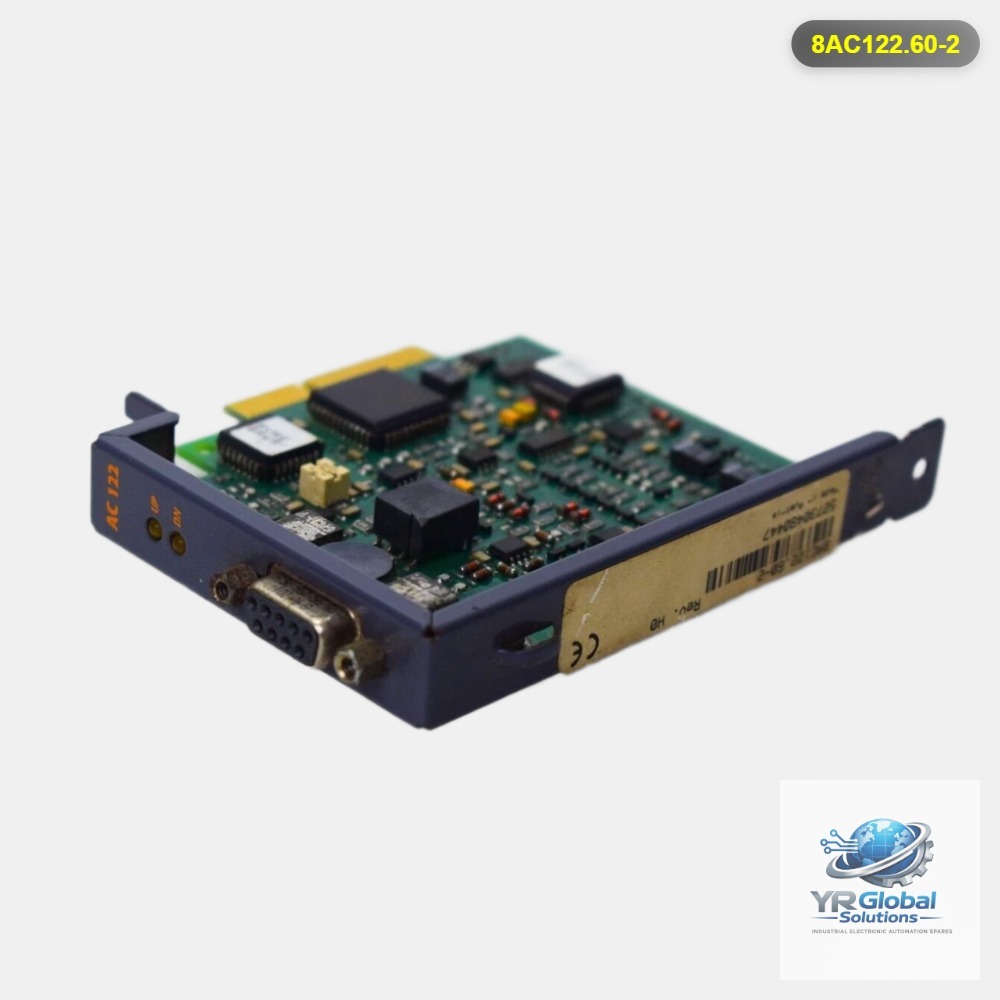

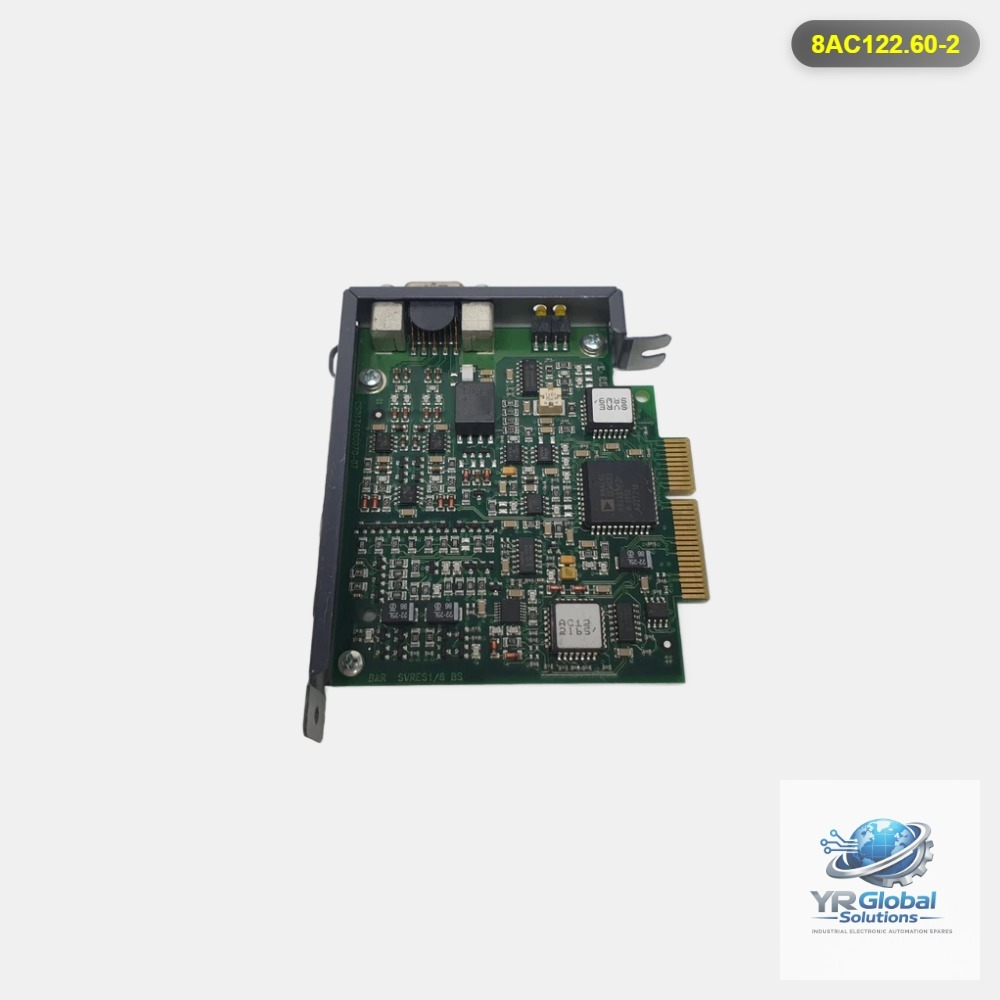

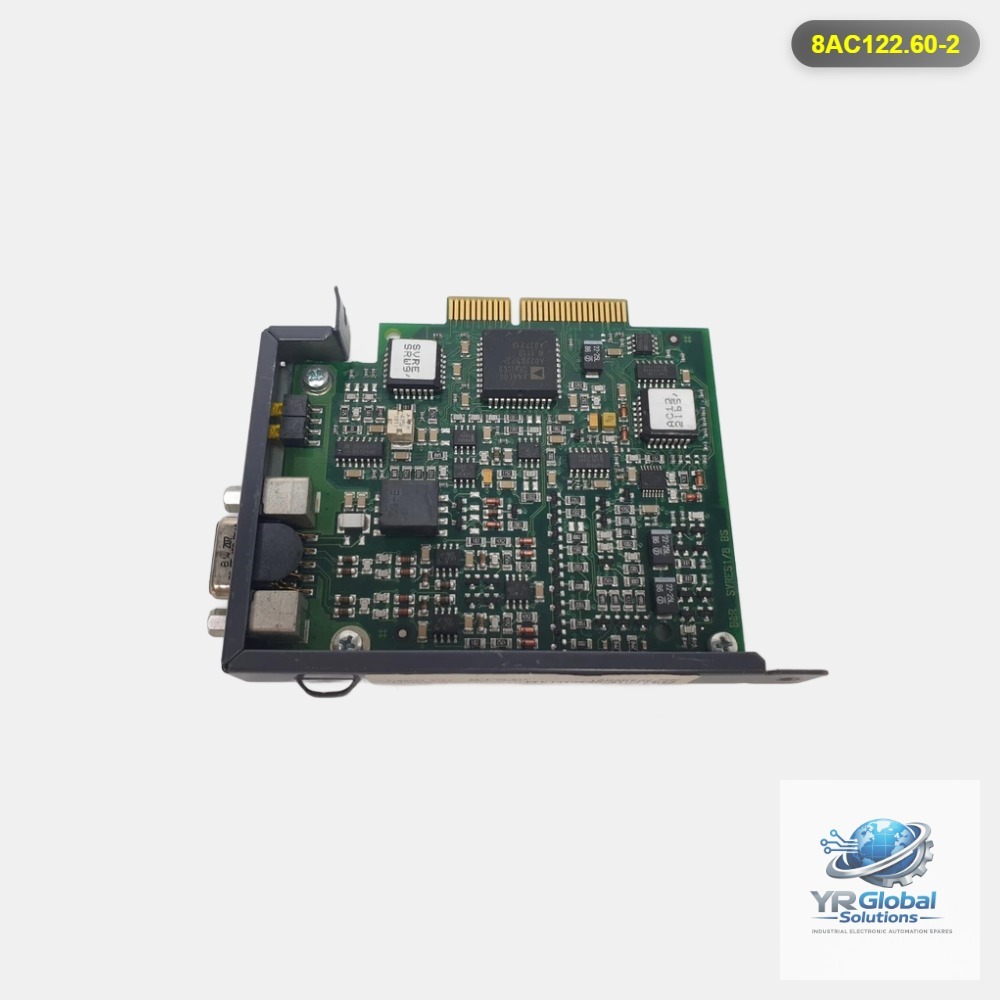

B&R AC122 P/N: 8AC122.60-2 ENCODER MODULE,
The 8AC122.60-2 serves as an essential link for precision motion profiles. It translates a single-turn absolute rotor position into highly accurate data that the ACOPOS main drive requires for real-time motor commutation and position loops. The module is designed to slide cleanly into any of the available option slots on an ACOPOS drive chassis. Upon system startup, the ACOPOS operating system automatically identifies the module. Because standard resolvers lack onboard parameter chips (unlike newer digital EnDat variants), motor and resolution characteristics must be configured manually within the PLC project tree rather than read automatically.
| Specifications | |
| Product Make | B&R AUTOMATION |
| Interface Channel | 1-Channel Resolver Interface |
| Position Resolution | 14-Bit (16,384 increments per revolution) |
| Reference Signal Frequency | 10 kHz excitation |
| Input Signal Voltage Range | 3 Vrms to 7 Vrms |
| Maximum Power Consumption | 2.5 W (Typical standby draw: 0.7 W) |
| Galvanic Isolation | Integrated between resolver inputs and drive logic |
| Physical Interface | 1x 9-Pin Male D-SUB Connector |
| Maximum Supported Distance | 100 meters using shielded B&R encoder cables |
| Ambient Operating Temperature | 5°C to 40°C nominal (Up to 55°C with forced air cabinet derating) |
| Condition | GOOD |
| Warranty | 3 Months |
| Country of Origin | Austria |
| Protection Degree | IP20 |
| Length | 110 mm |
| Width | 90 mm |
| Height | 15 mm |
| Weight | 200G |
