B&R AC122 P/N: 8AC122.60-1

SKU: 8AC122.60-1
Availability:

Available on backorder


B&R AC122 RESOLVER INTERFACE MODULE 8AC122.60-1

19,000.00 20,000.00

Available on backorder

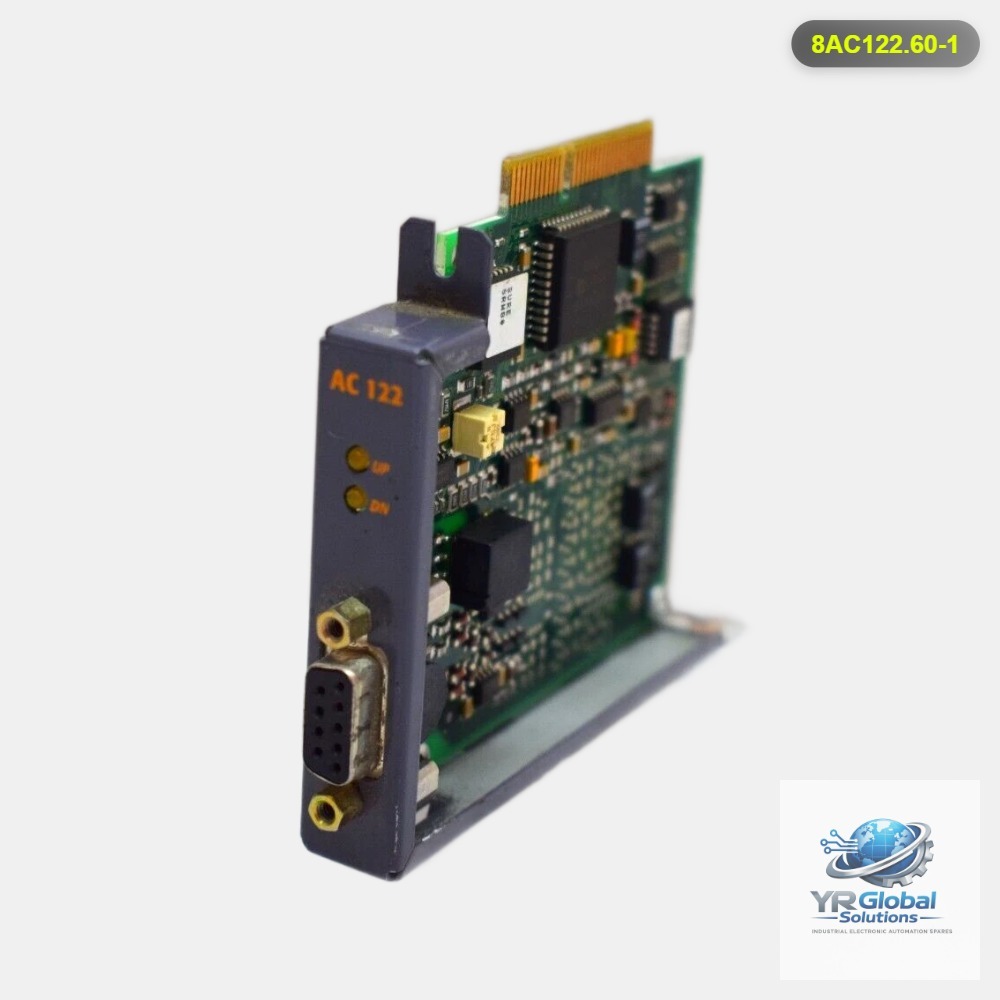

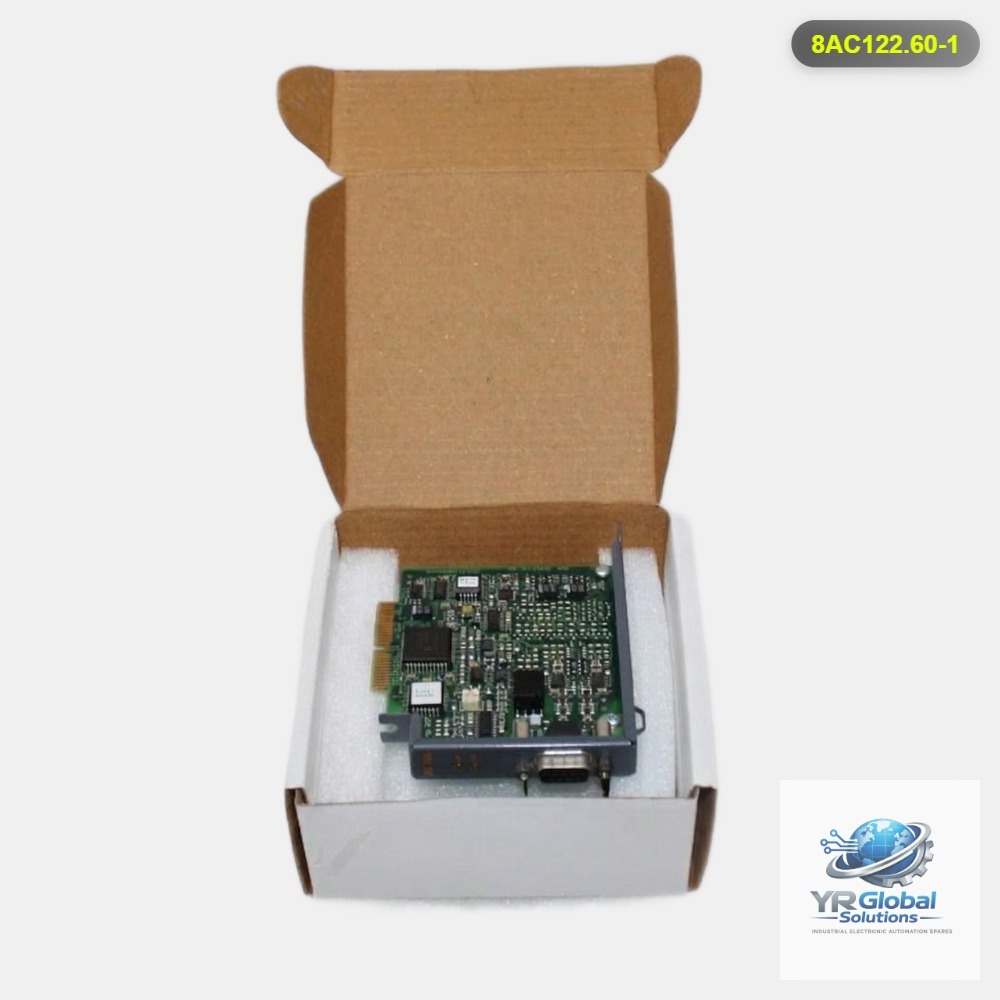

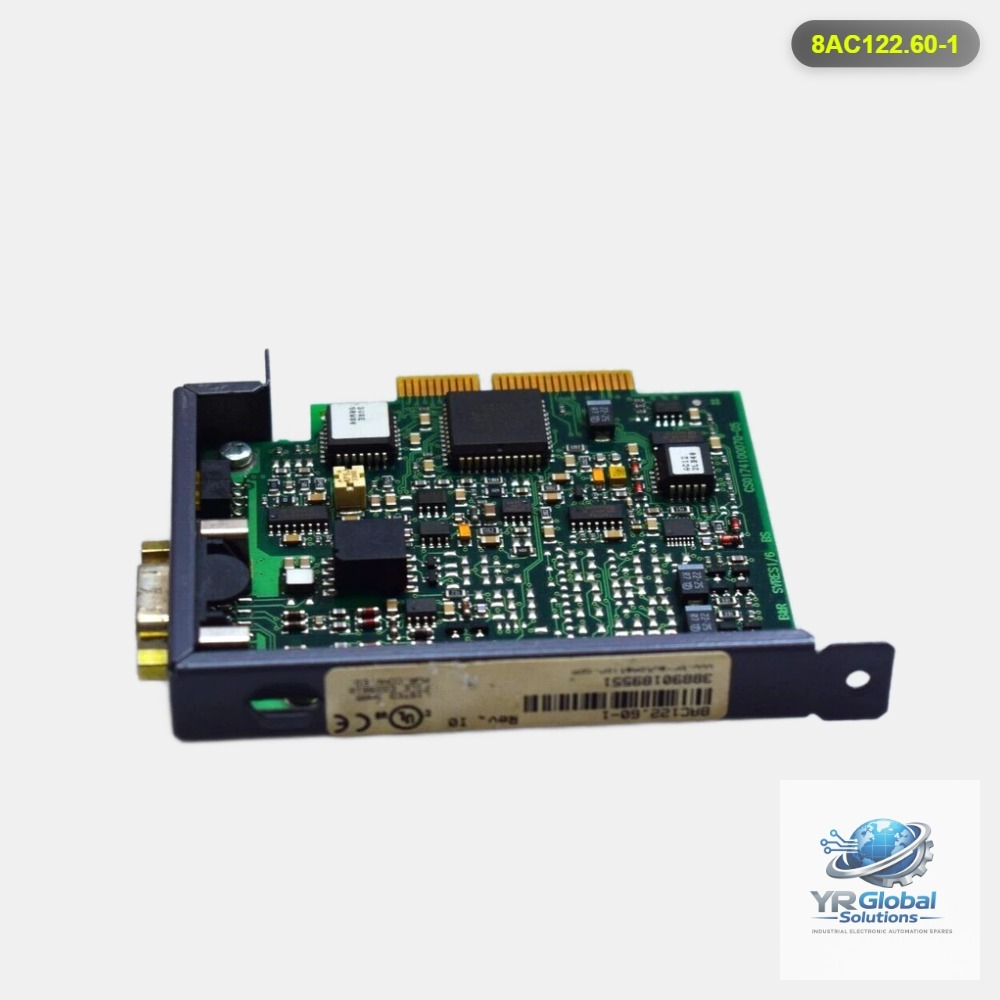

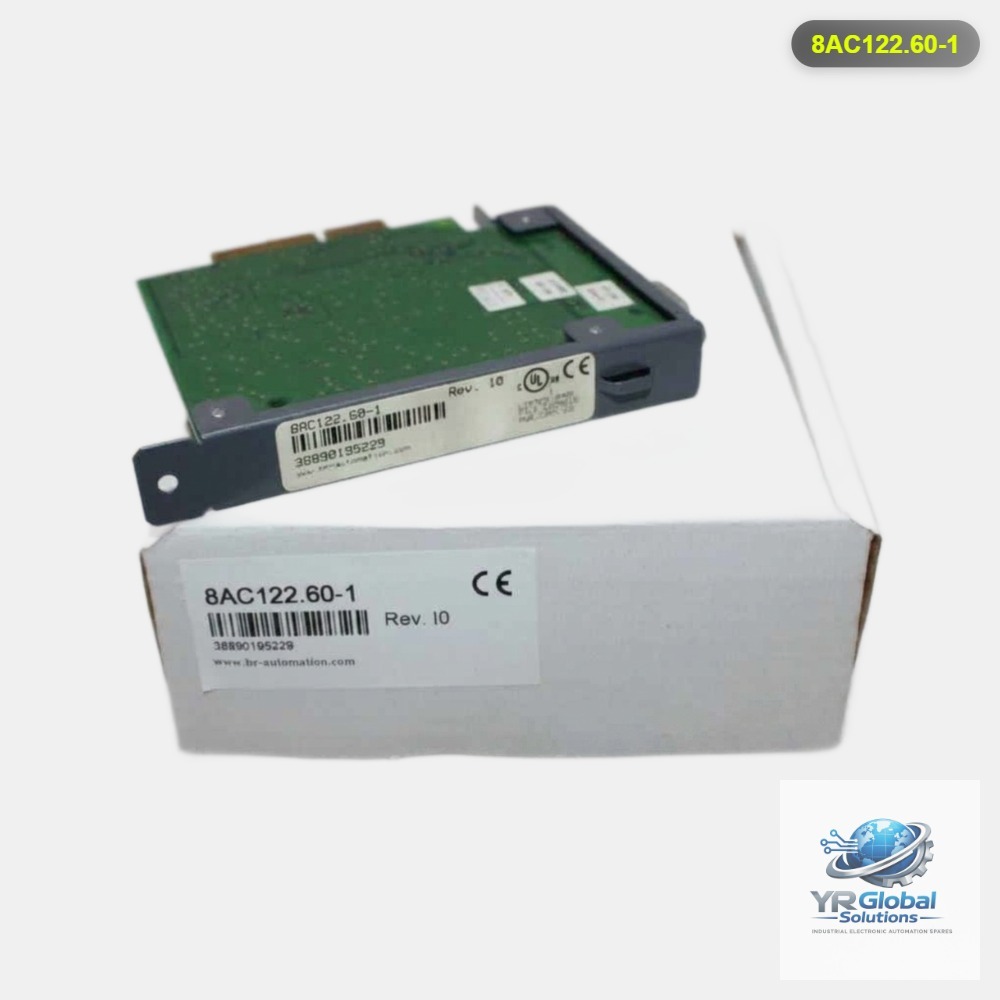

B&R AC122 RESOLVER INTERFACE MODULE 8AC122.60-1

The 8AC122.60-1 module slides directly into one of the available plug-in slots on an ACOPOS drive to expand its feedback capabilities. It is engineered to operate reliably in high-vibration and electrically noisy industrial environments. The module converts analog sine and cosine signals from the resolver into highly accurate digital position data, enabling precise closed-loop speed and position control of synchronous servo motors.

Specifications
Product Make B&R AUTOMATION
Product Family ACOPOS Plug-in Modules
Interface Type Resolver interface
Resolution 14-bit (16,384 positions per revolution)
Reference Signal 10 kHz, approx. 10 Vpp amplitude
Input Signals Sine and Cosine differential signals, 2 Vpp to 10 Vpp
Connection Port 9-pin D-sub plug (female)
Max Cable Length 100 metres (requires shielded, twisted-pair cabling)
Power Consumption Maximum 2.5 Watts
Electrical Isolation Fully isolated from the servo drive internal logic
Condition GOOD
Warranty 3 Months
Country of Origin Austria
Protection Degree IP20
Length 115mm
Width 15mm
Height 90mm
Weight 140g
