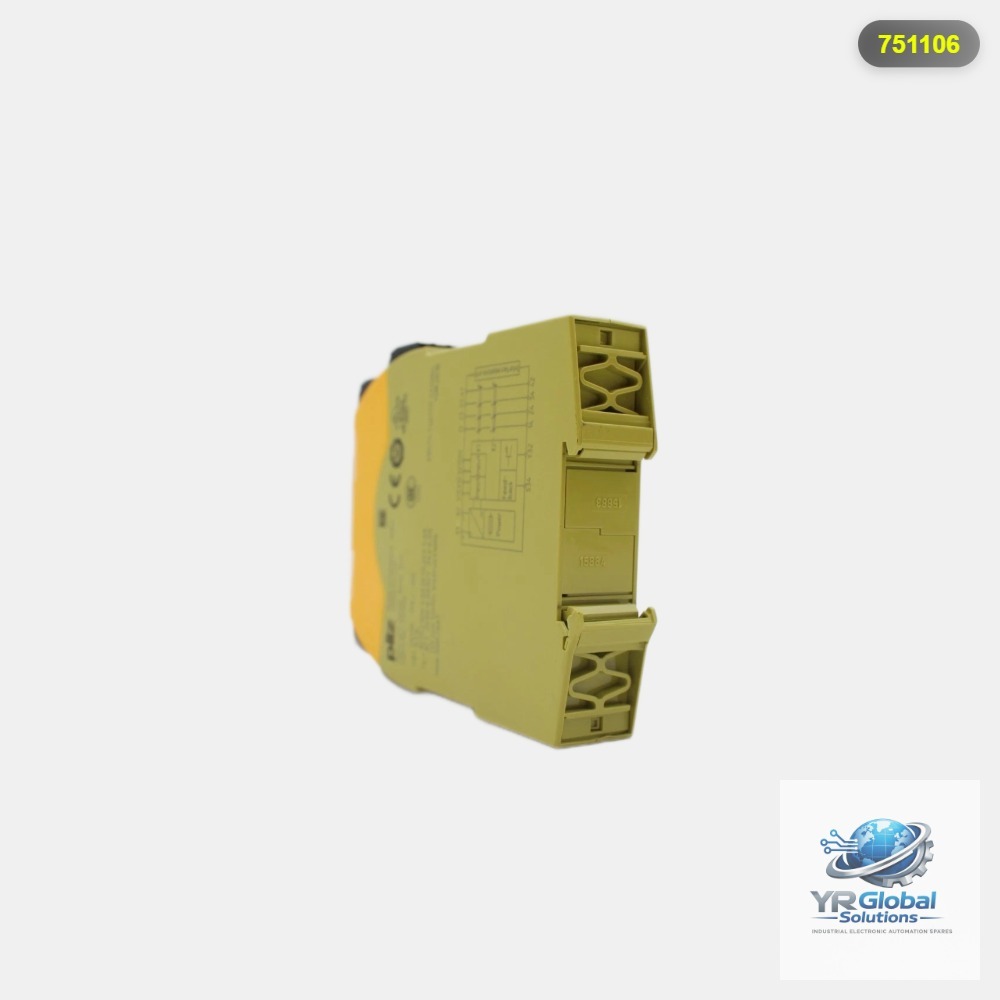

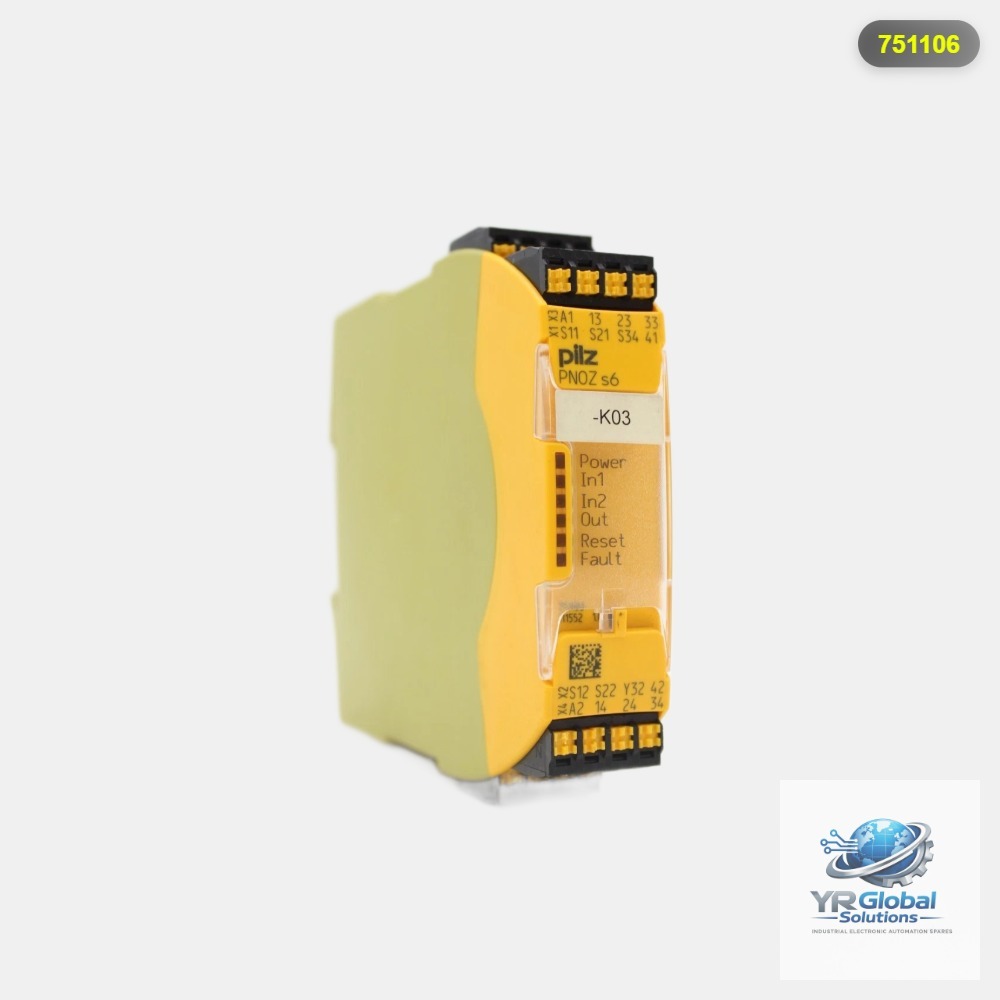

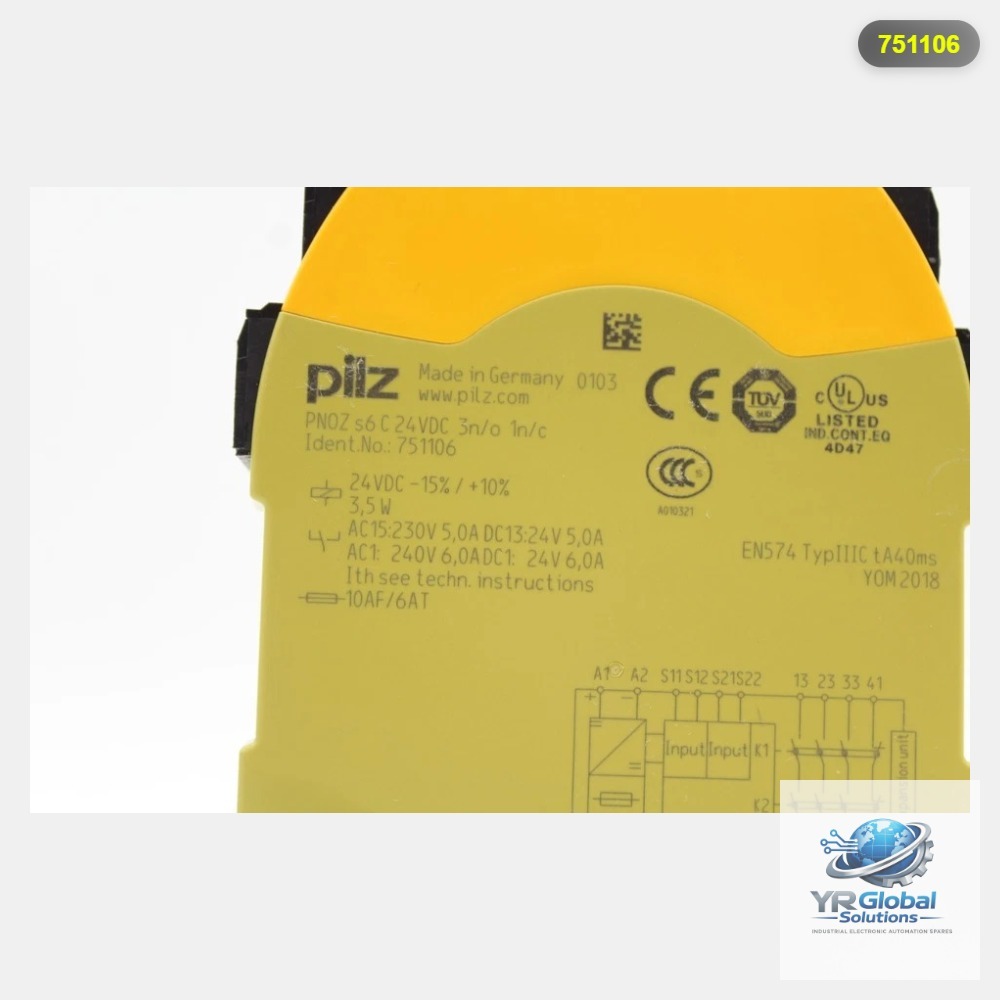

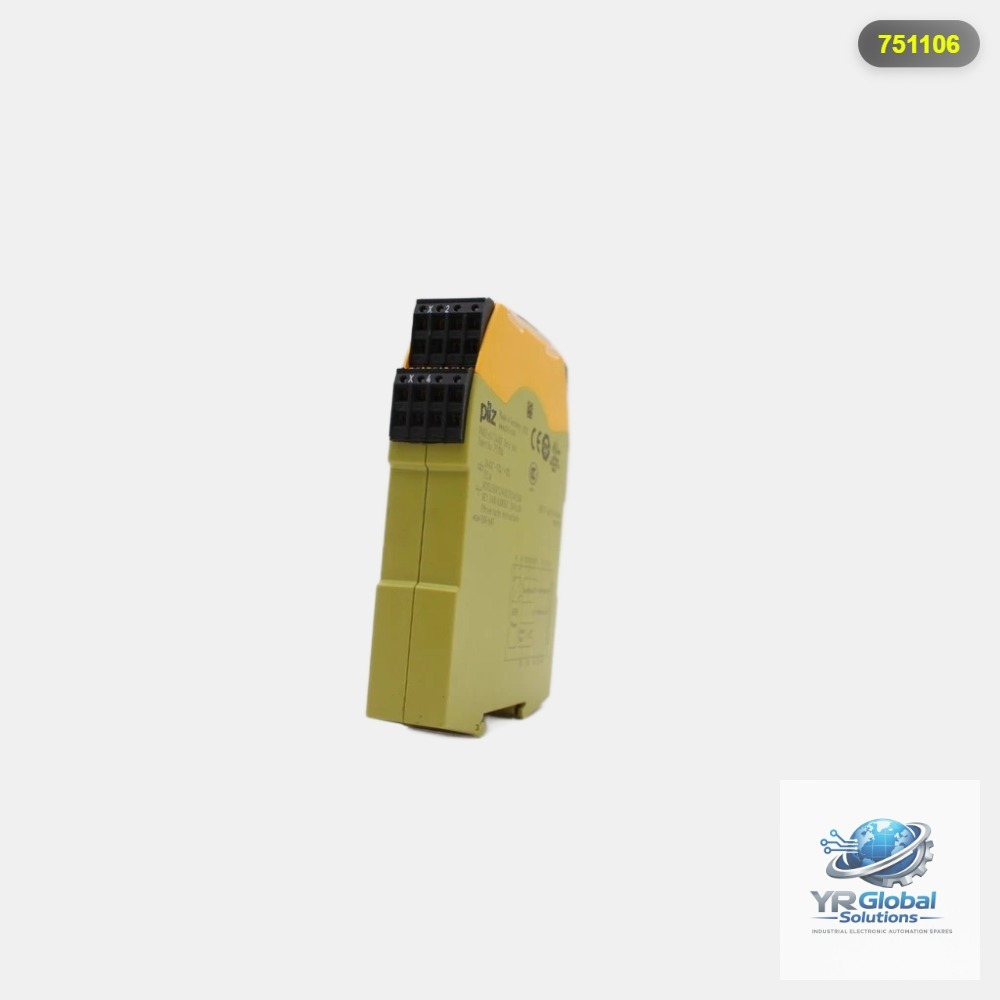

Pilz 751106 (PNOZ s6 C) Safety Relay – Two-Hand Control Monitoring, Type III C
The Pilz 751106 (Model: PNOZ s6 C) is a premium, compact PNOZsigma standalone safety relay designed for ultra-reliable two-hand control monitoring (Type III C) in industrial automation. This safety device ensures maximum machine operator protection by requiring the simultaneous activation of two separate control inputs within 0.5 seconds, effectively preventing hazardous machinery from starting up accidentally or running when a hand is removed.
| Specifications | |
| Product Make | PILZ |
| Part Number / SKU | 751106 |
| Model Code | PNOZ s6 C 24VDC 3 n/o 1 n/c |
| Application Type | Two-Hand Monitoring (Type III C according to EN 574) |
| Supply Voltage | 24 V DC |
| Safety Contacts | 3 Normally Open (N/O) instantaneous contacts |
| Auxiliary Contacts | 1 Normally Closed (N/C) instantaneous contact |
| Semiconductor Outputs | 1 Diagnostic Signal Output |
| Max Switching Current | 6.0 A per contact |
| Max Switching Voltage | 240 V AC / 24 V DC |
| Condition | NEW |
| Warranty | 1 YEAR |
| Country of Origin | Germany |
| Protection Degree | IP40 (Housing), IP20 (Terminals) |
| Length | 120 mm |
| Width | 22.5 mm |
| Height | 100 mm |
| Weight | 195 g |
