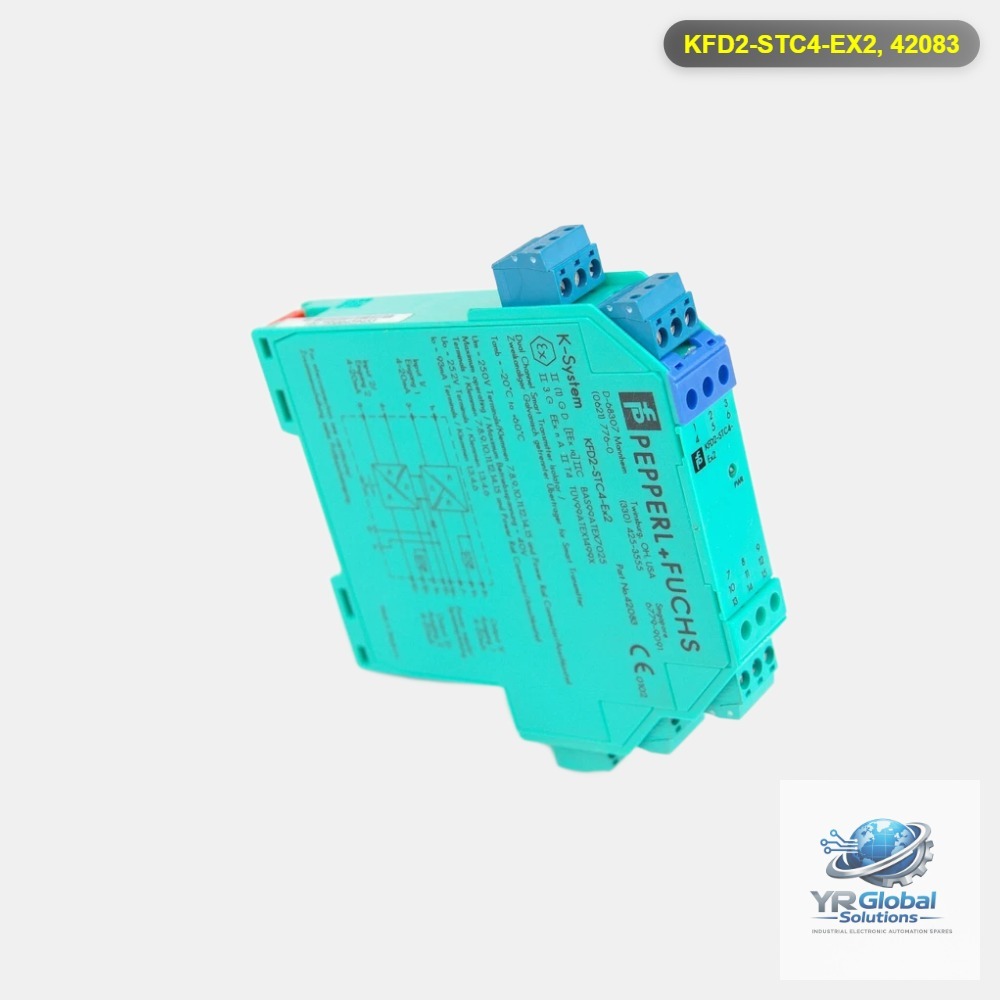

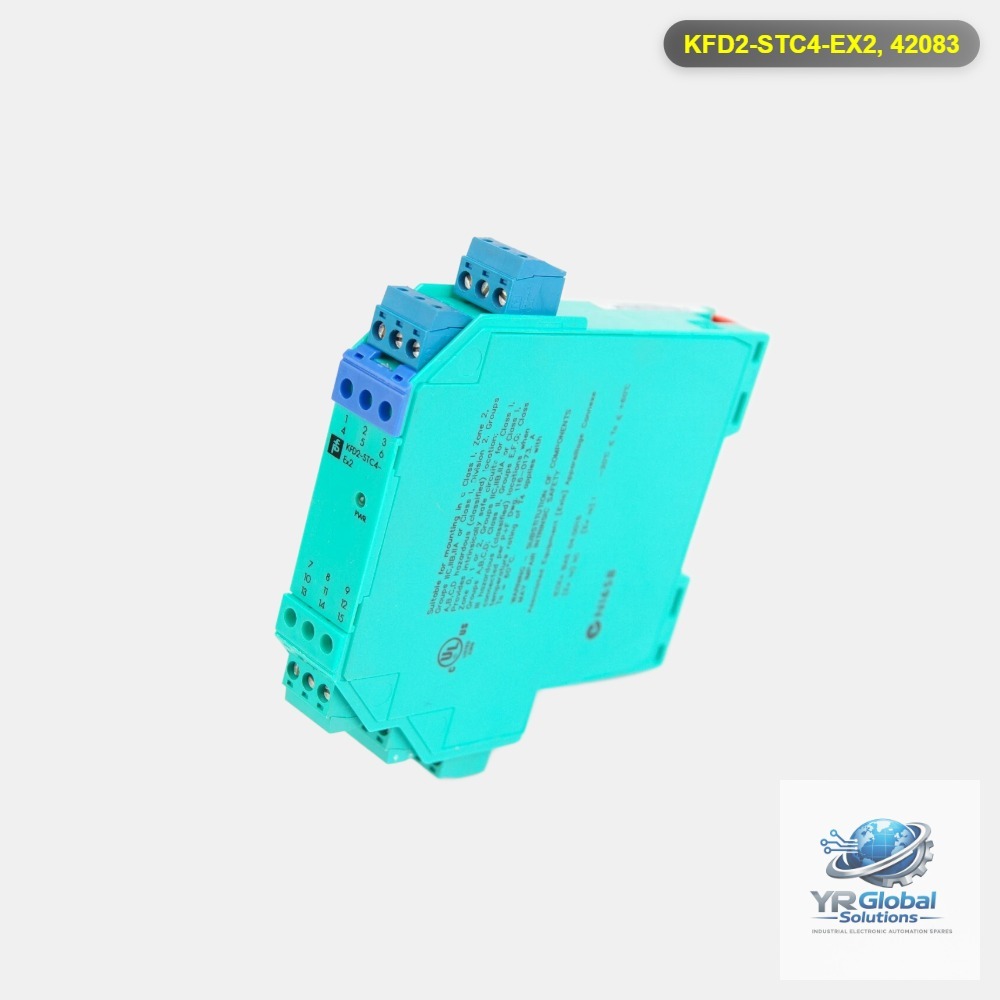

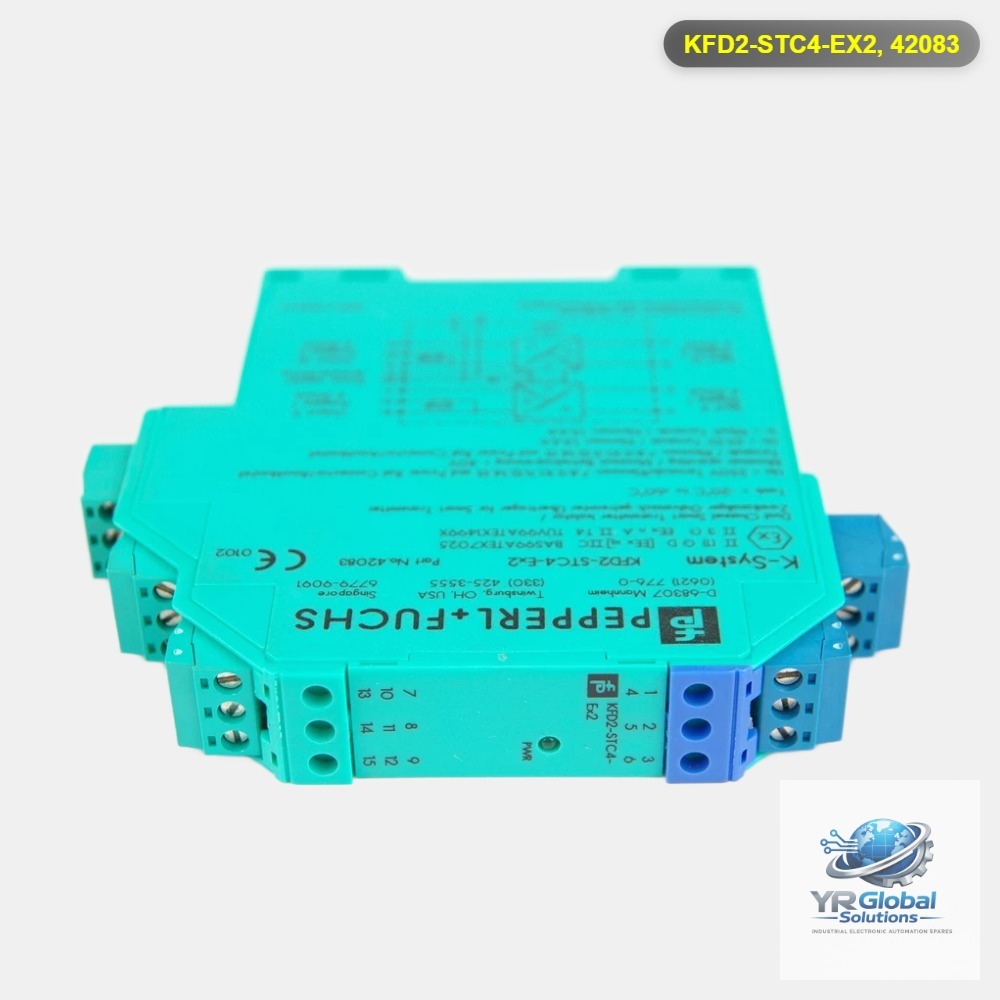

PEPPERL+FUCHS KFD2-STC4-EX2, P/N: 42083
The primary function of this module is to safely supply power to 2-wire SMART transmitters operating in hazardous explosive environments (such as Zone 0, 1, 2 or Div 1, 2). It intercepts the incoming 0/4 mA to 20 mA analog field loop signal, isolates it completely via galvanic barriers, and transfers it securely to the safe control area (such as a PLC or DCS).
| Specifications | |
| Product Make | PEPPERL+FUCHS |
| Channels | 2 fully independent channels |
| Rated Supply Voltage | 20 to 35 V DC |
| Power Dissipation | Max. 1.8 W |
| Input Signal Range | 0/4 mA to 20 mA |
| Available Transmitter Voltage | ≥ 15.7 V at 20 mA current draw |
| Output Signal Range | 0/4 mA to 20 mA |
| Frequency Range / Bandwidth | 0 to 7.5 kHz |
| Functional Safety Rating | Certified up to SIL 2 compliant according to IEC/EN 61508 |
| Operating Temperature | -20 to 60 °C (-4 to 140 °F) |
| Condition | Good |
| Warranty | 3 Months |
| Country of Origin | Germany |
| Protection Degree | IP20 |
| Length | 115mm |
| Width | 20mm |
| Height | 124mm |
| Weight | 200g |
